Through paint - ultrasonic thickness tester gage um-1D

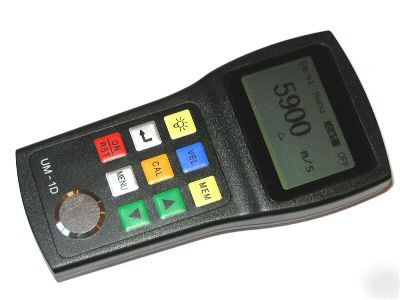

UM-1D Ultrasonic Thickness Gauge / Tester with
Through Coating or Paint Capability
** Well Made, Well Shaped, Well Performed and Well Priced **
!! One Year Worldwide Warranty !!
UM-1D unit with Built-in Calibration Block (4.0 mm)
Dual Element (echo to echo) Probe, Probe end Diameter: 8.00mm
4mm end-diameter probe with cable - standard mode only (working range: 0.8 mm - 22.0 mm or 0.03 in - 0.85 inch)
5 Level Chrome Calibration Block - in inch ($49.00 extra)
The UM-1D is a simple to use, high accuracy, hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and/or coatings and even to eliminate the thickness of the paint or coating. The UM-1D offers Through-Coating or Paint Thickness Measuring Capability - You can now test painted tanks, pipes, etc., without needing to remove the paint or make corrections for the paint thickness.
UM-1D is manufactured under the strict quality control guidelines established by ISO 9001: 2000 Standards. Its quality is insured by our return policy and full-coverage warranty.
Our DW-1D can communicate with PC to download test results - the only difference between DW-1D and UM-1D .
We use engine oil as coupling paste and provide the bottle for your own oil refill, to avoid leaking of the oil during transportation.
* Measuring range: 0.8 - 260 mm in Standard Mode or 3.0 mm - 23.0 mm in Through-Coating Mode
* Accuracy: +/- (1%H +/- 0.05) mm
* Sound velocity range: 1,000 - 9,999m/s, adjustable by 1 m/s
* Memory capacity: up to 500 test values in five memory blocks
* Display Resolution: 0.1mm or 0.001 inch
* Working temperature: -10 C ~ +50 C
The following steel sample is with paint (red color) covered on it, the gauge can use "Standard" or "Through Coating" modes to check the sample.
When "Standard" (Std) mode is used, the gauge displays a value of 5.4mm, which includes the thickness of the paint and base material (steel).
After switch to "Through Coating" (Coat) mode, the thickness is 5.0 mm - this is the real thickness of the sample WITHOUT the paint layer.
* The tester comes with a standard PT-08 probe, a copy of operation manual, a carrying case with strap, a can of coupling paste (oil), a calibration block (4.0mm) built in the main unit as shown in the picture and two AA batteries.
Chromed Five-Level Calibration Block ($49.90) 4mm-end probe with cable ($189.90)
4mm end-diameter probe with cable (measuring range: 0.80 mm - 22.0 mm, "Std" mode only)
