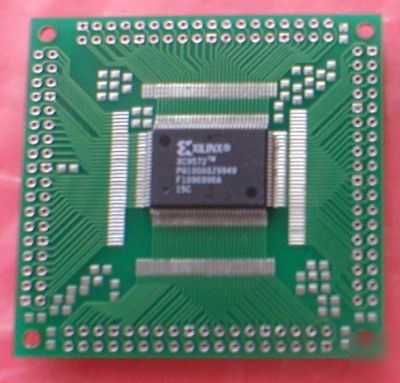

Xilinx XC9572 cpld on a universal pcb test board
It is excellent to prototyping and using in your own projects. All the pins of the CPLD are available on 4 connectors on each side of the board.
I can send you a large number of projects to get you started such as:
* How to use the CPLDs internal delay as a source for a clock (ca 11MHz for a -15 device)
* How to connect a 7-segment displaywith VHDL code and simple schematic
* How to make a 8 bits D/A converter in VHDL with only one Resistor and one Capacitor (the cheapest possible D/A converter).
* How to make a delta sigma A/D converter in VHDL using only an external comparator
* How to use this board as XIlinx JTAG Parallel Cable IV
* How to use this board as Altera ByteBlaster JTAG Parallel Cable
* 7.5 ns pin-to-pin logic delays on all pins
* 72 macrocells with 1,600 usable gates
- Endurance of 10,000 program/erase cycles
- Program/erase over full commercial voltage and temperature range
* Enhanced pin-locking architecture
* Flexible 36V18 Function Block
- Global and product term clocks, output enables, set and reset signals
* Extensive IEEE Std 1149.1 boundary-scan (JTAG) support
* Programmable power reduction mode in each macrocell
* Slew rate control on individual outputs
* User programmable ground pin capability
* Extended pattern security features for design protection
* Advanced CMOS 5V FastFLASH technology
* Supports parallel programming of more than one XC9500 concurrently
