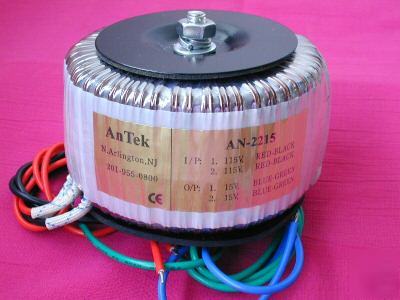

15V+15V / 30VCT 200VA power amp / audio transformer
1. Primary V = 120VAC, Primary I = .02A
2. Primary V = 140VAC, Primary I = .06A
TEST CONDITION: Apply variable voltage to primary coil (115V terminals) from 1-20VAC at 60Hz and short circuit on secondary coils. The test result is 7.5V and 1.74A (13W) on primary coils which is the maximum rated current test
1. Primary I = 0.02A, Secondary V = 15.5AC at 0.0A, Power = 0 Watt
2. Primary I = 0.95A, Secondary V = 15.3VAC at 6.1A, Power = 94 Watt
3. Primary I = 1.52A, Secondary V = 14.6VAC at 11.6A, Power = 170 Watt
Dimension 4.5 Diameter x 2.3 High.
If you have more technical questions, please visit antekinc.com or e-mail to ****@yahoo.com. we carry full line of power transformers.
