Allied telesis centrecom at-MX10 microtransceiver MX1O
FidiaDroop Our internal inventory number on this product is 5H#YX6-3D
The CentreCOM Micro Transceivers are 10Base-2 and 10Base-T compliant transceivers designed to reduce Ethernet cabling costs. Compact size allows these transceivers to connect directly to the workstation, bringing thin Ethernet or Unshielded Twisted Pair (UTP) wiring directly to the workstation. With UTP and inexpensive coax network media, distances up to 100 meters between workstations can be supported using UTP, and up to 185 meters using coax. On all models Signal Quality Error (SQE)/Heartbeat test can easily be enabled or disabled via an externally accessible switch. Additionally, all models have integral jabber lock-up prevention circuitry and a loopback function. This function emulates coaxial media where transmitted packets are looped back to the receive side. Local Area Network (LAN) controllers can use the loopback feature to determine if a Media Attachment Unit (MAU) is connected and operational.

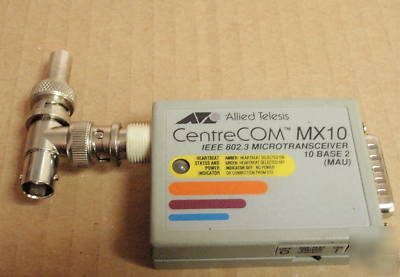

Product Description: Allied Telesis CentreCOM MX10 microtransceiver, Model AT-MX10
Dimensions (WxDxH): 4.25 in x 3 in x 0.8 in
OTHER INFO: 705-10261-04 Rev B
