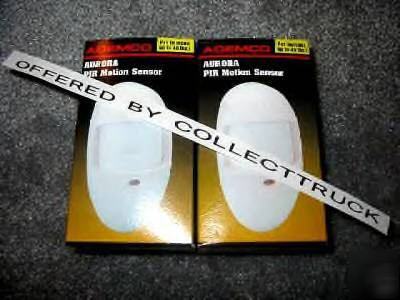

10 ademco aurora motion detectors 40LB pet immune vista
QUANITY (10) ADEMCO AURORA MOTION DETECTORS BRAND NEW IN THE BOX, " 100% brand new nib " note some boxes are shelf warn" ADEMCO AURORA PIR PASSIVE INFRA RED MOTION DETECTORS WITH 40 LB PET IMMUNE, THESE HARD WIRE MOTIONS CAN BE USED WITH ADEMCO VISTA SERIES -SYSTEMS FEATURES 35 X 45 COVERAGE PATTERN, SPLIT-ZONE OPTICS TECHNOLOGY.
* VISIBLE RED LIGHT FOR MOTION VERIFICATION,ADJUSTABLE BEAM HIGHT EZ-MOUNT FEATURES FOR FAST TRUBLE-FREE, INSTALLATION,INCLUDES INSTRUCTIONS
Ademco PIR Pet Immune Motion Detector - Aurora
Next-generation Split-Zone Optics and advanced ASIC-based processing give the pet immune Aurora laser-sharp detection.
* Pet Immune up to 40 pounds.
* Extremely enhanced ASIC-based processing
* Entirely silent relay operation
* Detection Method Dual Element Passive Infrared
* Coverage Pet Immune Lens: 35' x 45' (10.6m x 13.7m)
* Detection Zones(2 fingers per Zone)
* Pet Immune Lens: 28 zones(eight over eight long range, eight intermediate, four short range)
* Intermediate, Standard or Harsh, selectable via jumper link Temperature Compensation
* Advanced dual-slope temperature compensation adjusts for above and below body temperature
* Alarm relay cannot be compromised with a magnet
* Detectable Walk Rate 0.5-10ft/sec (.15-3m/sec)
* Mounting Height 7ft. (2.1m) recommended for pet installations
* Indicator Red LED, enabled/disabled via jumper link
* Alarm Relay Form A, SPST, 90mA @ 16VDC with 15-Ohm protective resistor
* Input Voltage 8-16 VDC (Voltage reversal makes PIR inoperative)
* PIR MOTION SENSOR Current 4 mA (standby) 4 mA nom. (alarm, LED disabled)10 mA nom. (alarm, LED enabled) All current nominal at 12 VDC)
* Operating Temp 14F to 122F (-10C to +50C)
* Operating Humidity Up to 95% RH (max.), non-condensing
* Dimensions 2.9" W x 4.1" H x 1.5" D(60mm x 104mm x 38mm) (max protrusion)
