Condor HBB15-1.5-a+ 12VDC 15VDC linear power supply

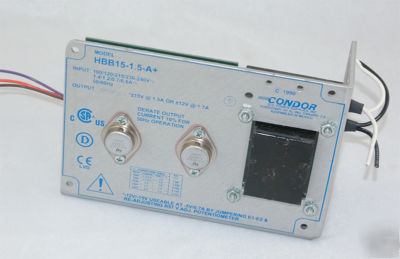

Condor HBB15-1.5-A+ 12VDC 15VDC Linear Power Supply
Output: +/- 15V @ 1.5A or +/- 12V @ 1.7A
This item has been removed from a working environment and tested by a qualified technician. Very low usage hours.
AC Input: 100/120/220/240 VAC +10%, 13%. 47-63 Hz. Tolerance for 230 VAC operation is +15%, 10%. Derate output current 10% for 50 Hz operation.
Adjustment Range: 5% minimum except HAD Series.
Line Regulation: 0.05% for a 10% change.
Load Regulation: 0.05% for a 50% load change.
Output Ripple: 3 mV + 0.05% of output voltage peak to peak maximum. All 3-terminal regulator outputs: 3 mV + 0.2% peak to peak maximum.
Transient Response: 50 microseconds for 50% load change.
Short Circuit and Overload Protection: Automatic current limit/foldback.
Overvoltage Protection: Built-in on 5 V models, set at 6.2 V 0.4 V. Other models use optional overvoltage protection.
Remote Sensing: On all models except HA and HTAA; open sense lead protection built-in.
Stability: 0.05% for 24 hours after warm up.
Temperature Rating: 0 C to 50 C, full rated, derated linearly to 40% at 70 C.
Temperature Coefficient: 0.01%/ C maximum.
Efficiency: 5 V units 45%; 12 V and 15 V units 55%; 20 V and 24 V units 60%.
* UL1950 Approved without D3 Deviation
* World-Wide AC Input Ranges
* World-Wide Safety Standards
* Industry Standard Packages
* VDE/IEC Transformer Construction
* 2-Hour Burn-In with Cycling
* Capacitors Have Highest C/V and Ripple Current Ratings in Industry
* Anti-Latchup Circuit on Duals and Triples
* MTBF of Over 200,000 Hours Per MIL Handbook 217D on Most Units
