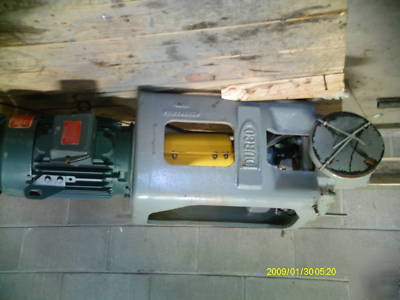

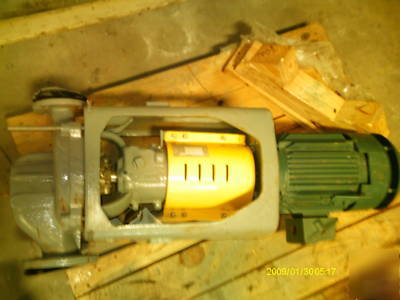

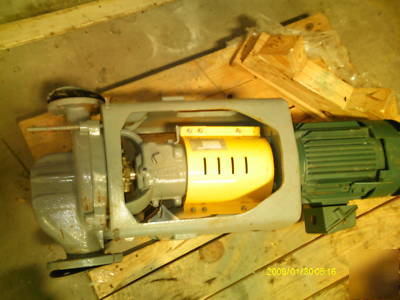

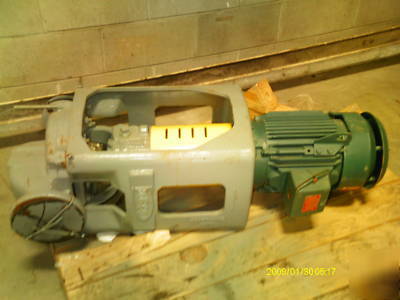

Durco mark iii chemical process pump 3 x 2 w/ 3HP motor


Model 1K3X2V-7RV M3V FPD DS vertical in line 175GPM @ 20' TDH
Flowserve type RO O-Ring Ceramic Rotary vs Carbon Seat, Viton Elastomers, 316SS metal parts, 316SS small bore gland, Cover FMS, Flush Gland, Casing Carbon Steel (DS/WCB), Cover Gasket-TM, Impeller-316SS (D4/CF-8M) impeller gasket- TFR, Bearing Housing-DC12, shaft-316SS, no sleeve required, casing- standard, 150# FF ansi Drilling,no casing Drain Tap, No Suction Tap, No Discharge Tap, Power End-Mark IIIA, Pump Stand-Steel, Reliance NEMA C-Face Motor, TEFC-EMT Chem Duty (3.00HP 1800RPM 182TC) 460 vjolts no9 spacer heaters, woods coupling, sureflex type SC6, Steel Motor fasteners, std steel cply guard(safety yellow) New Pump
