Ferritronics coded squelch reader TU01 motorola rare

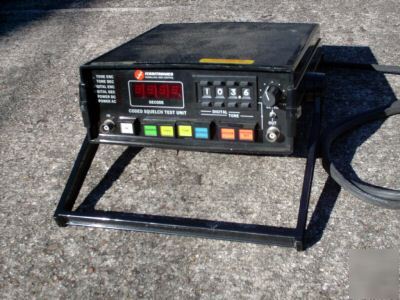

This is a used Ferritronics TUO1 coded squelch test unit. Unit accepts all valid Motorola and Ferritronics codes Comes with Manual no M-379. Encode mode 25msec after keying Encode set, .1% frequency 50-275Hz range; 0-1.6v RMS adjustable (0-4.5v pp), 4 segment 10 position push swithch , 180 degree phase shift for 120ms after release of encode swithch. Tone decode mode, 37 standard EIA tones (and 97.4Hz, non-standard),; Frequency measurement from 50 to 275Hz, 0.1% from 50 to275 Hz, EIA tone mode : 500 ms Typical ; Frequency Mode 250 ms Typical 4 digit LED readout reads directly in Hz. It came from a working shop,. Poweres up and looks fine. It will be warranted for 12 days against DOA. Ask me questions as these are something I do not know about. Runs on AC or DC 13.6 vdc. (Battery also) Made in Cannada. Very Nice Cosmetically. SR # 0194 qc18529. Looks like a J14 computer accesory will plug into the back. Also comes with a manual.
