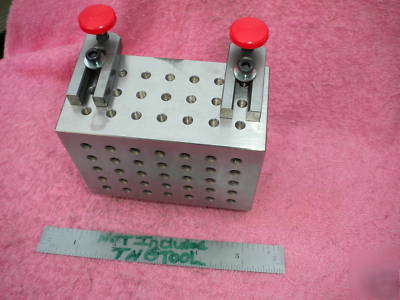

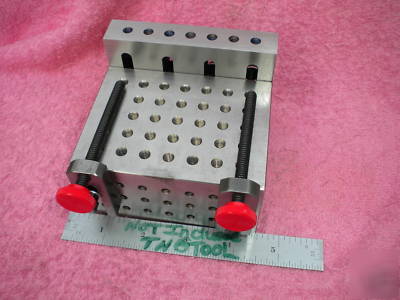

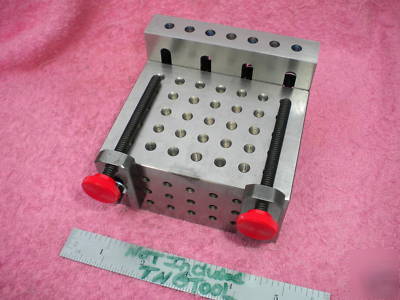

Grind cube clamps machinist/toolmaker, hardened 1/4X20

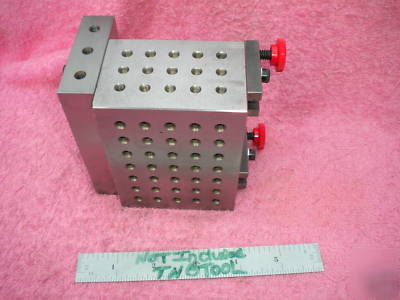

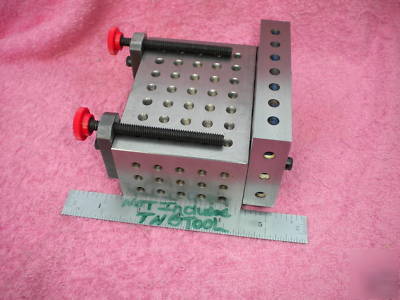

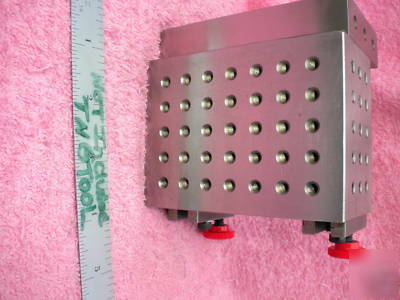

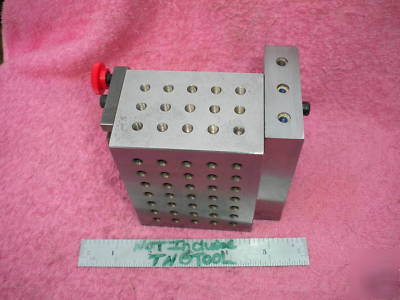

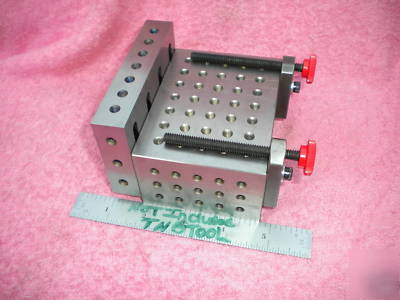

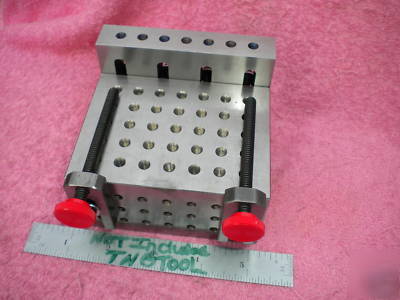

TOOLMAKERS GRINDING CUBE WITH CLAMPS, (1 CUBE ONLY) MANY MORE IN STORE!!!! PRECISION GROUND WITH 2 CLAMPS AS SHOWN TO MAKE BLADES OR ELECTRODES. THIS IS A TOOLMAKER MADE COPY OF A WELL KNOW FIXTURE MADE FROM STEEL. BOTTOM OR BASE IS LARGE SO IT REALLY STICKS TO YOUR MAGNETIC CHUCK. BLOCK WAS GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND A HERMANN SCHMIDT MAGNA-SINE ON A BALLWAY SURFACE GRINDER BY PA TOOLMAKER. THIS IS AN EXCELLENT USED TOOL!

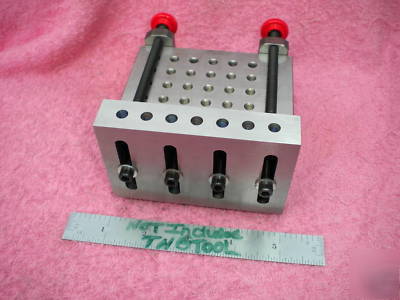

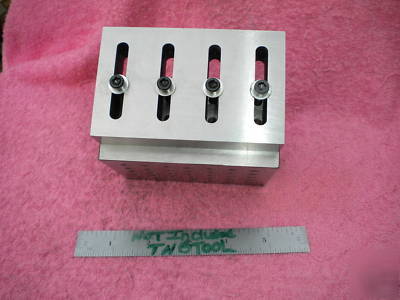

BLOCK MEASURES 3.005" WIDE WITH LENGTH OF 4.025" AND IS 2.022" TALL. BLOCK HAS (107) TAPPED HOLES #10 X 32 IN BASE ALONE! BACK RAIL FURTHER HAS (13) TAPPED #10 X 32 HOLES AND BACK IS SLOTTED 4 TIMES FOR THE #10 X 32 SOCKET HEAD CAPSCREWS AS SHOWN. VERY NICE GRIND BLOCK FOR SURE! MANY HOLES GO CLEAR THROUGH IT AND ALL ARE IN GREAT SHAPE! MADE FROM AIR-HARDENED TOOL STEEL. HAS MINOR STAINS AND MINOR MARKS FROM USE AS SHOWN. GREAT FOR BLADE GRINDING OR ELECTRODE MANUFACTURING. ALL EDGES PRECISION CHAMFERED AS SHOWN AND IN MINT CONDITION SWEET SWEET TOOL!!! BLOCK WAS STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS.
