New altronix 12 or 24VDC 2.5 amp AL300ULX power supply
Altronix 12VDC or 24VDC 2.5 amp AL300ULX Power Supply NEW

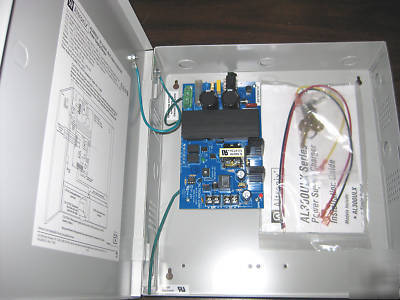

NEW We removed one from the box to take photos.
Includes: Instruction/Specifications, Key Lock w/Keys, Leads
12VDC or 24VDC selectable output.
2.5 amp of continuous supply current output.
Class 2 Rated power limited output.
115VAC 60Hz, 1.45 amp input.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Built-in charger for sealed lead acid or gel type battery backup.
Maximum charge current .7 amp.
Zero voltage drop upon transfer to battery backup.
AC input and DC output LED indicators.
AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC)
For more information go to manufacturer s web site:
