Sadelco displaymax 5000 signal catv meter DM512040
* Sadelco DisplayMax 5000 DM512040
* Option 1: Ingress Detection
* Option 2: Leakage Detection
* Option 4: Modem Return Level

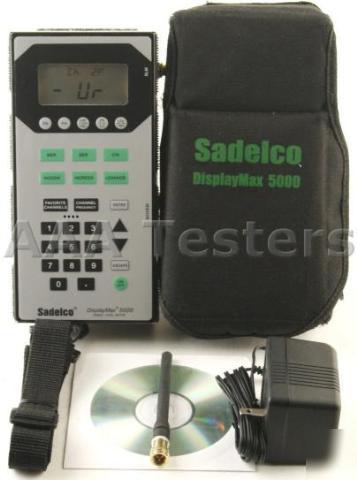

Sadelco DisplayMax 5000 (DM512040) Signal Level CATV Meter With Options 1, 2 & 4 Installed
- Option 4: Modem Return Level
The DisplayMax 5000 provides a complete test solution for today s installation workforce. The 5000 series measures analog and digital channel power as well as quality measurements such as MER, BER and C/N. Return levels are measured using a built-in DOCSIS modem, insuring sufficient headroom for reliable modem operation.
Finally, shielding is verifi ed by measuring Leakage and Ingress. All these tests from a single, low cost and easy to use field instrument. The DisplayMax 5000 is the only meter your installers need.
The DisplayMax 5000 has a rugged aluminum housing, weather proof keypad, protected LCD display, virtually unbreakable F-connector bushings and comes in a padded nylon case. In addition to the rugged mechanical design, it has a built-in white noise source that acts as a calibration reference. Before each reading, the meter adjusts its calibration, making the 5000 series not only rugged, but also extremely accurate. The auto-calibration feature eliminates the need for annual calibration.
Measuring return levels not only verifies a connection with the CMTS, but also insures sufficient headroom for reliable modem operation. With the press of a single button, DisplayMax 5000 displays the return level on a large easy to read display. If levels are too high, the installer can take measurements at various locations to pinpoint and fix the source of the problem.
Detect unwanted ingress signals in the drop and home wiring. Meter automatically scans the return path and checks for ingress down to -40 dBmV. A Pass / Fail message is displayed along with the frequency and level of the highest ingress signal.
Detect forward channels leaking from the drop and home wiring. Leakage detection is the fastest way to find the source of Ingress; simply attach the rubber duck antenna and search for hot spots . Shutting down a source of Leakage shuts down a source of Ingress.
This option adds a DOCSIS modem chip-set to your meter. Qualify the return path by establishing a connection with the CMTS (cable modem termination system) and verify healthy margins by viewing the modem s return level.
Typical Accuracy from 0 to 120 F
Max Additional Error from 0 to 120 F
Frequency Range: 5 to 872 MHz.
Default Frequency Range: 5 to 40 MHz.
Return Sensitivity: -40 dBmV (5 to 40 MHz)
Forward Sensitivity: -30 dBmV (40 to 872 MHz)
Accuracy: Same as base model digital channel
Frequency Range: 110 to 140 MHz.
Sensitivity: 2 uV/m, with duck antenna 3ft from leak
Responds only to video signals (rejects non-cable signals)
Audio: Outputs tone; pitch varies with level
Accuracy: Same as base model analog channel
Downstream Locking Range: -15 to +20dBmV
