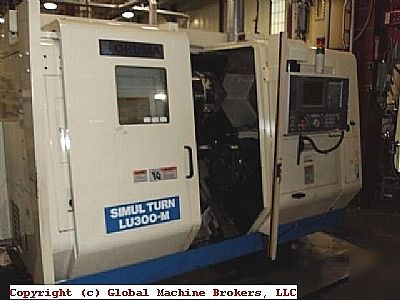

2003 okuma model lu-300M cnc lathe 20.8" swing
2003 Okuma Model LU-300M CNC Lathe 20.8" Swing
The following information was taken from the manufactures brochure.
This unit listed is older and used.
Spindle speed range 45 - 4500 rpm
Max travel lower turret 24.21"
Rapid traverse rates (XA & XB) 787 ipm
Rapid traverse rates (ZA & ZB) 984 ipm
Rotary tool speed range 45 - 4500 rpm
Dimensions 119" x 84" x 81" high
Machine is equipped with OSP-E100L CNC control, (two) live rotary tool holders, 8" Kitagawa 3-jaw chuck, standard ID and OD tool holder blocks, 1000 PSI high pressure TTS coolant system, chip conveyor, chuck, tailstock, touchsetter and light curtains.
