Burns platinum rtd and temperature transmitter
More RTD's from your best source for pre-owned RTD's.

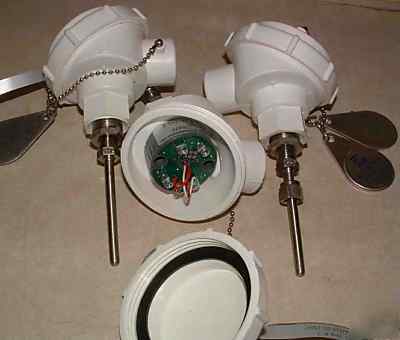

The stainless steel, 3 wire, 100 ohm, alpha = 0.00385, RTD is 1/4 inch diameter and 2-3/4 inches long. Four (4) of these units appear to be in mint condition, Two (2) units have a stainless compression fitting clamped to the sheath, and one (1) unit is scratched up - probably from having it's compression fitting removed. Knock off $10 if you take the scratched one. The connection head is plastic (PTFE I believe). The two-wire transmitter is a Model TA factory calibrated at 0-150C (32-302F) equals 4-20 ma (Range 21). The (very nice) transmitters can be field calibrated for any range with a bottom end between -50 and +50 C and a top end between 50 and 800C and a minimum span of 50C. The complete item tag is 300B10A9PO30/TA21. The picture shows the units from both ends and with and without the compression fitting.
All units were tested and all readings were within +- 2 deg. F of the Thermocouple readout in my shop.ASKING PRICE IS PER PIECE.
