Dvt  legend 500  600 series breakout board
DVT Legend 500 600 series Breakout Board

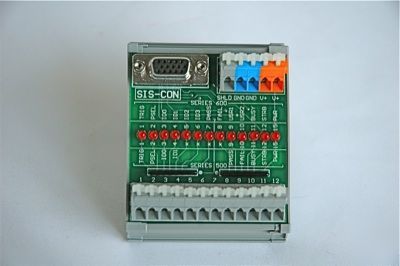

The SIS-CON breakout board was designed for both the DVT Series 600 and the DVT Legend 500 Series wiring.
With one DB15 connection for the DVT communications cables and screen printed wiring for both 600 and 500 series cameras.
This breakout allows you to power up the camera and communicate to the on-board discrete I/O of the camera.
Also comes with an extra power and ground connection to wire up other devices.
Board has patented Wago cage-clamps instead of tradition screw terminals for wiring.
If you have any questions about how to use it on your current application, contact us.
