New athena 32 c temperature/process controller

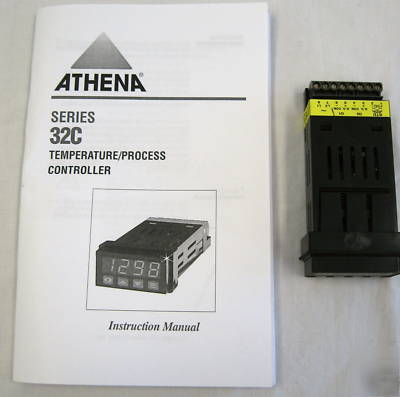

New Athena 32 C Temperature/Process Controller Athena 32c Temperature / process controller. 32c-U-T-T-00 0539000215 UL listed 545F. 85-250 VAC . accepts J, K, or
T thermocouple, 100 ohm RTD, 0-50 or 10-50 mv, 0-20 or 4-20 ma (with
included shunt resistor) input. LED display. Dual outputs are
opto-isolated solid state relays up to 1 A, 120-250 vac. This is a
1/32 DIN unit, panel cutout size 1.772 x 0.874 in. New, with manual.
