New honeywell PV100S powervent 1 in. sweat connection~

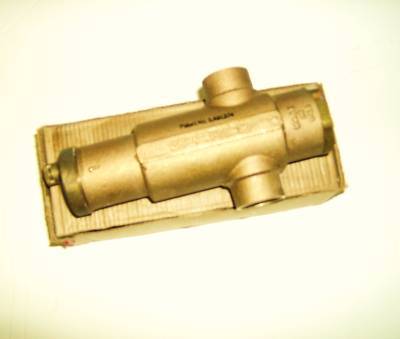

SPARCO/HONEYWELL PV100S 1 in. Sweat connection "POWER VENT"
During filling, maintenance or through oxygen infiltration, air is introduced into every hydronic heating/cooling system. To function properly, the air must be eliminated. The Sparco Powervent slows the velocity of the water in its enlarged chamber, where the water impacts onto a stainless steel dynamic concentrator. The concentrator merges bubbles and microbubbles, which then float to the top from where they are vented to the outside. The high capacity vent keeps the water level below the venting point for a clean vent nozzle. The GoldTop venting mechanism (patent pending) offers the largest venting rate at pressures up to 150 psi
* Helps prevent corrosion of system by air elimination
* Fully serviceable, top to bottom
* Low pressure drop, high Cv bi-directional flow
* Universal design 3/4" - 1 1/2" for vertical risers
* Sweat connections for sizes 3/4" x 1 1/4"
* Bronze/stainless construction.
