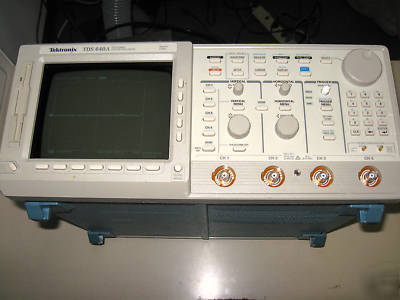

Tektronix tds 640A four channel digitizing oscilloscope
TEK TDS640A Digital Real-Time Oscilloscope
* Record Length to 15,000 Points
* 1 mV/div to 10 V/div Sensitivity
* Histograms and Measurement Statistics to More Fully Characterize Design Performance
* Support for Java Applications Packages
* Hard Disk Drive Storage (option)
* Support for External Zip Drive
* Waveform Math and Advanced Waveform DSP
* Fully Automated Measurement System
* Waveform Pass/Fail Template Testing
* RS-232, Centronics, and GPIB
* Digital Design and Charactarization
* Telecommunications / Datacommunications
Your designs may be digital but at today's speeds, many of your toughest problems aren't. Crosstalk noise. Transmission effects. Ground bounce. Not to mention sub-nanosecond edges. Today's design problems require high bandwidth oscilloscopes that can measure up to these challenges. The Digital Real-TimeTM architecture of the Tek TDS 600 Series simplifies capturing intermittent signals or non-recurring problems like glitches or metastable states caused by setup and hold time violations.
TheTek TDS 600 Series provides design engineers excellent single shot accuracy for multi-channel, high speed signal characterization.
Sample Rate (all channels simultaneously)
Maximum Record Length per Channel
8-Bits; >11-Bits with averaging
Histograms and Measurement Statistics
