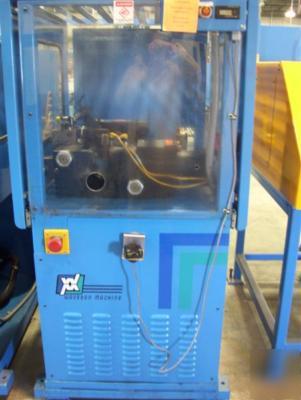

One Stroke Hydraulic Endformer Model 1701
Includes Opti-Touch Start Cycle
Lead Time... Stock to 2 weeks after receipt of order
45 day warranty on purchased components
90 day limited warranty on perishable/wear items
Above does not include labor or travel.
1. Endformers designed for most endforms up to 1-1/2 diameter.
3. Clamp block dimensions 1-1/2 W x 2-3/4 H x 4 L
4. Punch dimensions .9375 diameter

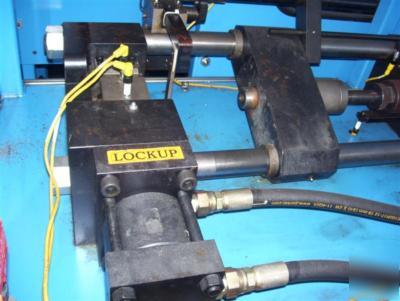

1. Straight push style lock up, will deliver up to approximately 12.5 tons of clamping force, per Wauseon Machine and Mfg. clamp force testing procedures.

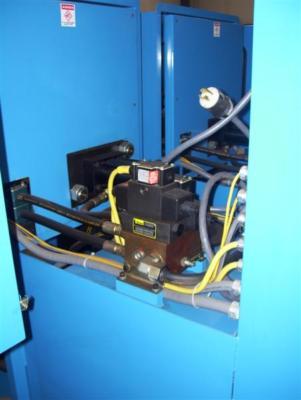

1. The standard 3 bore hydraulic cylinder in conjunction with the hydraulic
power unit will deliver up to 8 tons of force.
1. The 3 bore hydraulic cylinder will accommodate approximately 1,000 single- strokes per hour. (This figure does not include load and unload times).
NOTE: Specific component brands are subject to change at the discretion of Wauseon
b. Allen-Bradley MicroLogix PLC
c. Allen-Bradley Control Panel Buttons
d. Allen-Bradley Proximity Switches
e. Allen-Bradley Motor Starter
f. Control Panel Mounted on the Right Hand Side
a. Parker Pressure Compensating Pump (15 GPM)
Note: Some items will extend lead-time.
A. Paint color other than standard blue. Add l.
B. Digital Position Indicator for Flagstop $ 820.00
C. Allen-Bradley SLC-500 PLC $1,400.00
D. 20 Light curtains (Allen Bradley). $1,990.00
E. Footswitch cycle start. $ 475.00
F. 1 Point Part Lube System $2,400.00
G. Wauseon Machine and Mfg. will design, build, and prove tooling on a quote basis.
NOTE: Although the model 1701 Endformer is equipped with a low voltage sensor on the flagstop, the sensor is not meant to be used as a cycle start. Because of the diversity of manufacturing requirements, we have quoted light curtains and start buttons under the options category. Wauseon Machine and Manufacturing, Inc. strongly recommends the use of light curtains and palm buttons for the safety of machine operators.
The specifications contained in this quote supersede any specifications stated in other literature.
* See specific detail in quote.
North America is $90.00 per hour per person (in plant), with travel at $70.00
per hour per person including travel and waiting time, plus all expenses.
North America is $85.00 per hour per person (in plant), with travel at $70.00
* International Service Rate is $ 100.00 per hour per person, including travel and waiting time, plus expenses and
Upon cancellation, charges in the amount of $70.00 per hour for work performed up to time of cancellation plus material related costs will be billed to purchaser.
