Heavy duty hydraulic truck lift 27,000 lb
For additional questions or information contact Don at (***) 336-1858 Monday - Saturday 9AM to 5PM
Forward Manufacturing Company, Inc. Heavy Duty Hydraulic Truck Lift
Model 27000 TL - 27,000 lb Capacity Truck Lift

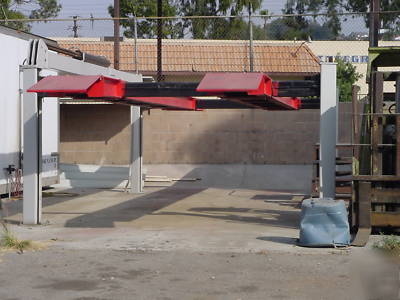

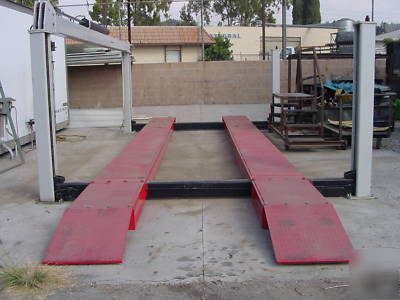

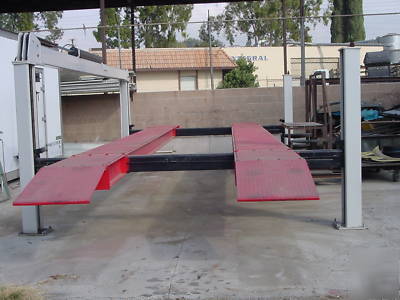

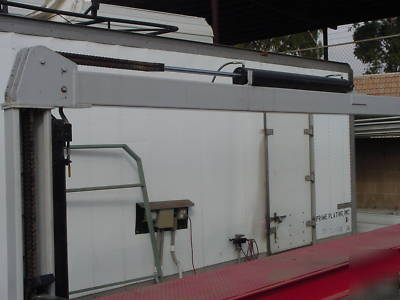

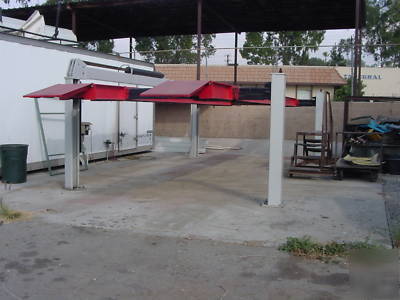

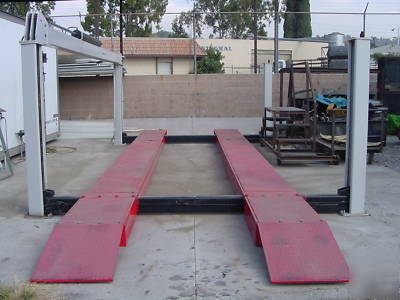

This is a Forward Manufacturing Company, Inc. Model 27000 TL Heavy Duty Truck Lift, this lift is in "like new" condition. It has the Option of the 3 foot Track Extensions Front and Rear. This Lift sells new for over $15,000.00 This Heavy Duty Lift is an excellent deal for someone who has a Diesel Truck Repair or Motorhome Repair shop.
27,000 lb Lifting and 240" Wheelbase Capacity
Dual Point Lock Release for Easy Operation
Extra Wide Runways for Ease and Versatility Loading
Heavy Duty Construction for Long Life
Optional 3' Track Extensions for Front and Rear
Model 27000 TL Specifications:
Lifting Capacity....................................... 27,000 lbs
Maximum Lifting Height.......................... 68"
Overall Height......................................... 7' 8"
Recommended Ceiling Height................ 16'
Overall Width at Floor............................. 12', 5-1/2"
Clearance between Columns.................. 132"
Overall Length......................................... 24', 1"
Minimum Track Height............................ 9"
Track Width............................................. 24"
Wheelbase Dimensions........................... 240" Maximum
Speed of Rise.......................................... 100 seconds
Electrical................................................. 208/230 Volt, Single Phase, 60 Cycles, 20 Amps
