Honeywell spring return direct coupled actuator ML6185F

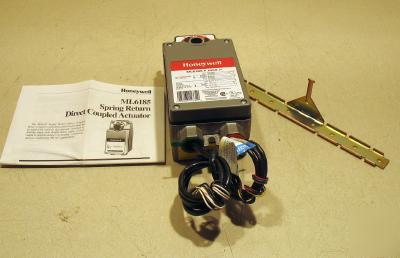

Honeywell Spring Return Direct Coupled Actuator ML6185F
The ML6185 spring return direct coupled rotary actuator is a floating control motor that can be used with controls that provide switched or floating single pole double throw(spdt) control output to operate dampers in heating, ventilation, and air conditioning(HVAC) applications.
Provides 50lb-in. running and sring return torque.
Magnetic coupling eliminates the need for mechanical stops or limit switch adjustments by limiting stall torque to 130lb-in. maximum.
95 degree stroke provides necessary compression of rubber/neoprene gaskets commonly used on 90 degree low leakage dampers.
Removable splined output hub permits premounting of the hub on the damper shaft, providing installation flexibility.
Reversiable mounting allows actuator to be used for either clockwise (CW) or counterclockwise (CCW) spring rotation.
Designed for both single-point and three-point mounting, providing installation flexibility.
standard models have two 8mm x 12mm long set screws for securing the damper shaft. Actuator models are available for various shaft sizes that will allow the damper shaft to operate centered inside the output hub.
Standard one-meter cable with color-coded leadwires allows external wire connections with 1/2" conduit connectors.
Can mount two or more actuators on one damper shaft to increase output torque for use on dampers larger than 16 square feet.
90 second timing (with time out)
