8-branch brass deluxe pex manifold for radiant heating

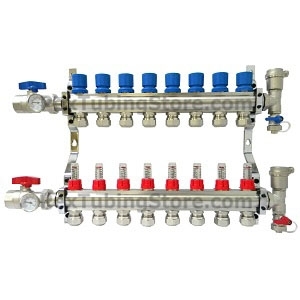

8-branch Brass Manifold Set for Radiant Heating
Pex Tubing StorePex Tubing StorePex Tubing Store BSM008
8-branch Deluxe Radiant Manifold Set. Brass body and components with nickel plated finish.
(1) Supply side radiant manifold w/ (8) flow indicators and (8) outlets for PEX tubing.
(1) Return side radiant manifold w/ (8) manual balancing valves and (8) outlets for PEX tubing.
(2) 1" threaded inlet, 1/4-turn shut-off valves - one for supply manifold and one for return (red and blue).
(2) Temperature gauges - one for supply and one for return manifold to monitor incoming and outgoing and water temperatures.
(2) Automatic, float-type air vents to eliminate air from the system - on both supply and return manifolds (air vent caps included for pressure testing purposes).
(2) All-in-one drain & fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.
(16) Compression adapters for 1/2" PEX tubing - included, no purchase necessary. Adapters of other sizes (3/8", 5/8", 3/4") can be purchased separately.
* Total number of PEX outlets: 16;
* Overall width when installed (with shut-off valves): 22.75"
