Honeywell Y8610U4001 y-pack pilot conversion kit

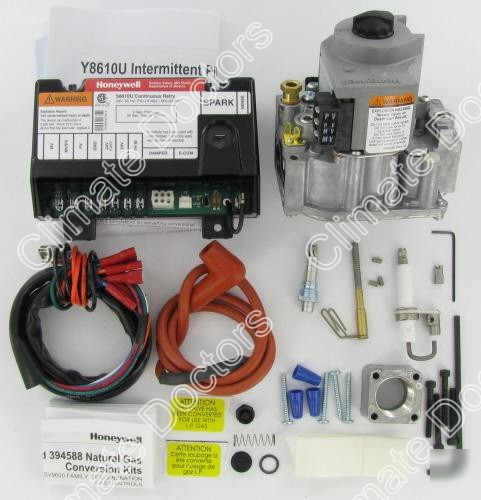

Honeywell Y8610U4001 Y-Pack Pilot Conversion Kit
Complete kits converting conventional standing pilot system to intermittent pilot system. For use with 24 Vac gas-fired atmospheric furnaces, boiler and heating appliances.
Y8610U kits are for use with natural or LP gas: provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated.
Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed.
Provide electronic control of intermittent pilot ignition systems used on gas fired furnaces, boilers, and other heating appliances.
Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
Internal high voltage spark generator
Maximum Valve Load @ 24 Vac (Amps)
3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
100 mm high x 138 mm wide x 67 mm deep
VR8204A2142 valve (1/2 x 1/2; 3.5" WC setting; 150 kBtu/hr at 1" p.d.)
Flame Failure Response Time (sec)
