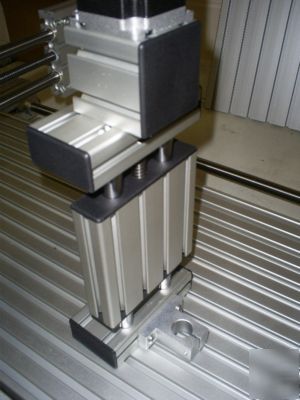

NEMA23 75MM z axis chrome + igus proxxon cnc kit
Chrome Shafting, IGUS Linear Bearings, Linear translation by Trapezoidal spindle assembled with Delrin nut. 20mm Proxxon Motor Mount.
Translation is via a Trapezoidal spindle assembeld with a Derin nut, minimum backlash.
Z Axis: Manufactured in the Uk by Marchant Dice Ltd (worldofcnc). Designed for use with our First time user TR range of Desktop CNC Machines
Trapezoidal Spindle: TR10x2 10mm Right hand thread (D) - (1 revolution = 2.0mm) Manufactured from C35E steel to a 7e tolerance, buttress thread form.:
Trapezoidal Delrin Nut: LKM 10x2mm Right hand Single Start thread (D) - (1 revolution x 2.0mm) Manufactured from Delrin, buttress thread form.:
Stepper motor coupling: SRD25- 10 x ? please advise, the diameter of your stepper motor spindle?
