New lot: (2) ac tech smvector 1 hp drives, nearly

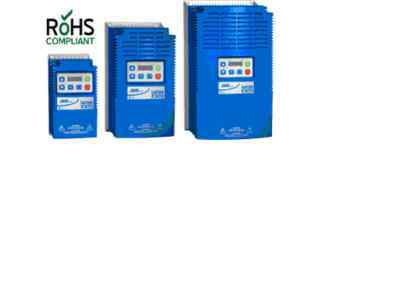

SMVector frequency inverter NEMA 1 (IP31)
* 120/240V 1Phase Input, up to 1.5 HP (1.1 kW)
* 200/240V 1 or 3 Phase Input, up to 3.0 HP (2.2 kW)
* 200/240V 3 Phase Input, up to 20 HP (15 kW)
* 400/480V 3 Phase Input, up to 30 HP (22 kW)
* 480/600V 3 Phase Input, up to 30 HP (22 kW)
The SMVector Series can be used with 3-phase AC induction motors and is available in NEMA 1 (IP31) , NEMA 4X (IP65) and NEMA 4X (IP65) with an integral disconnect switch. Filtered input versions of the SMV are available in NEMA 4X (IP65) models for compliance with the CE EMC directive.
Programmable digital and analog I/O allow the drive to be configured for many application specific tasks such as multiple preset speeds, electronic braking and motor jogging to name a few. Like all Lenze - AC Tech sub-micro drives, the SMVector uses EPM memory technology for fast and efficient programming.
Technical documentation for the SMVector Series Drive, and all AC Tech brand drives, is available in our Technical Library.
type 4X (IP65) enclosures are available for either indoor use, suitable for most indoor industrial environments; or indoor/outdoor use that offers UV protection and has higher impact strength at low temperatures.
