New neptronic bbt 24 electronic damper actuator,

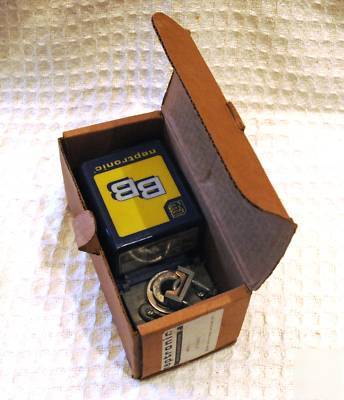

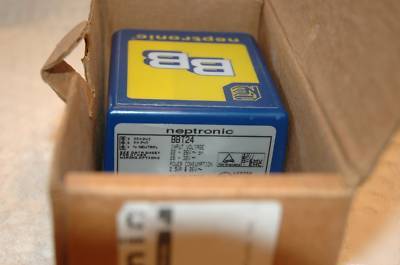

Neptronic BBT 24 Electronic Damper Actuator, NEW
Still in the box, brand new, never used. Made in USA
The BBT24 A is a digital actuator that operates on 24VAC nominal power supply
and delivers a minimum of 50 in.lb. or 5.6 Nm. torque at rated voltage. The actuator
may be wired for either clockwise or counterclockwise direction and the angle of
rotation may be mechanically limited. The design of the actuators requires that
power must not be left on the motor in either the fully open or fully closed
*Maximum Power Consumption 3VA at 26VAC
*Electrical Connections 18 AWG Minimum, 25 ft. or 7.6 m. Maximum per Actuator, Screw Treminals
*Control Signal 3 Wire /3 Point Floating
*Torque 50 in.lb. or 5.6 Nm. at Rated Voltage
*Angle & Direction of Rotation 0 -90 , Mechanically Adjustable & Reversible, 90 Seconds at 60 Hz or 110 Seconds at 50 Hz
*Ambient Temperature 0 F to +122 F or -18 C to +50 C
*Gear Train Enclosure Die Cast Zinc with a Steel Base
