Tektronix 466 dual trace storage oscilloscope tested
The 466 Dual Trace Storage Oscilloscope is designed to display non-repetitive or slow moving signals. A portable unit with DC to 100MHz response. Features two modes of storage: Variable Persistence and Fast Transfer. Stored writing speed of 110 div/?sec. Deflection factor from 5 mV /div to 5 V/div in a 1-2-5 sequence. Sweep rate of 5 nsec/div with X10 magnifier. Weighs 26 lbs. CRT mesh filter installed to minimize CRT faceplate radiation. Four signal-output BNC connectors on the rear chamber changes to a type that improves shielding of the connected signal leads. The unit offers reduced scan mode in which the stored writing speed is 3000 div/?s.

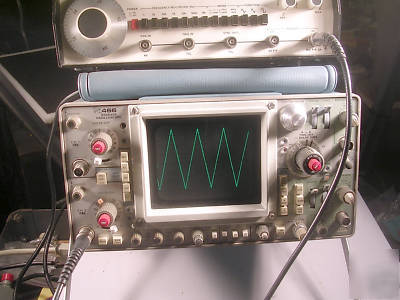

THE UNIT IS SHOWN WORKING WITH A WAVETEK 182A FUNCTION GENERATOR. THE UNIT COMES W/ A POUCH AND 1 PROBE ( NO GRABBER). WE OFFER A DOMESTIC DOA WARRANTY. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING
