New fluke TI10 infrared thermal imager ir ti 10
Fluke Ti10 Infrared Thermal Imager
The ultimate tool for troubleshooting and maintenance
Easily troubleshoot process equipment, electrical installations, electro-mechanical equipment, HVAC/R equipment and others!

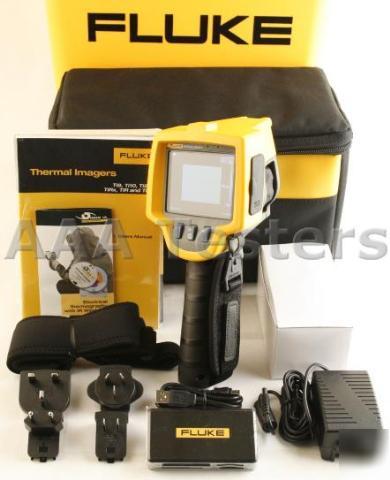

Includes Carrying Case & Complete Accessories!!
This thermal imager is the perfect tool to add to your problem solving arsenal. Built for tough work environments, this high-performance, fully radiometric infrared camera is ideal for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others.
See things both ways infrared and visual (visible light) images fused together communicating critical information faster and easier traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on Ti10 models.
* Enhanced problem detection and analysis capabilities with IR-Fusion Technology. Simply scroll through the different viewing modes quickly to better identify trouble areas in Full IR thermal, picture-in-picture, or automatic blend visual and thermal images.
* Optimized for field use in harsh work environments.
* Engineered and tested to withstand a 2 m (6.5 ft) drop When was the last time you dropped a tool?
* Withstands dust and water tested to an IP54 rating.
* Delivers the clear, crisp images needed to find problems fast.
* Identify even small temperature differences that could indicate problems with excellent thermal sensitivity (NETD).
* Intuitive, three-button menu is easy to use simply navigate with the push of a thumb.
* Everything needed to get started is included.
* Adjustable hand strap for left-or right-handed use.
Temperature measurement range (not calibrated below -10 C)
-20 C to +250 C (-4 F to + 482 F)
5 C or 5 % (whichever is greater)
Visible (visual) light lens: 46 cm (18 in)
160 X 120 focal plane array, uncooled microbolometer
Ironbow, blue-red, high contrast, grey
Smooth auto-scaling and manual scaling of level and span
Full infrared or picture-in-picture
100 % IR displayed in center 320 x 240 pixels
100 % IR displayed in center 640 x 480 LCD
SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each or 3000 basic (.bmp) IR images)
Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp) files
Export file formats w/SmartView software
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF
-10 C to 50 C (14 F to 122 F)
-20 C to +50 C (-4 F to 122 F) without batteries
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
User selectable temperature scale ( C/ F)
SmartView full analysis and reporting software included
Internal rechargeable battery pack (included)
Three to four hours continuous use (assumes 50 % brightness of LCD)
Battery charge time using ac adapter/charger and dc car charger:
AC adapter/charger (110 Vac to 220 Vac, 50 Hz to 60 Hz). Charges battery while imager is operating. Universal ac mains adapters included.
Sleep mode activated after 5 minutes of inactivity, automatic power off after 20 minutes of inactivity
IEC/EN 61010-1 2nd Edition Pollution Degree 2
25 G, IEC 68-2-29 {2 m (6.5 ft) drop, 5 sides}
0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in)
Two-years (assumes normal operation and normal aging)
English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech, Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese
