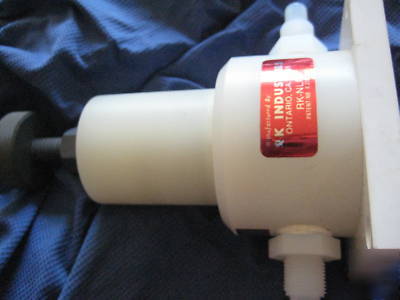

Rk industries pressure valve / regulator rk-nlf no lube
Regulated Pressure 15 to 100 PSIG (1/4" to 1-1/2")
15 to 80 PSIG (2" to 3"
Consult factory for higher regulated pressure requirements
5-50 PSI pressure range also available.
Material Valve Body PVC Type 1, Grade 1
Polypropylene
PVDF
Teflon
Seal EPDM
Viton(R)
Kalrez(R)
Temperature Range 0 F to 140 for PVC
0 F to 180 F for POLYPRO
0 F to 280 F for PVDF
0 F to 340 F for TEFLON
Valve ports 1/4" to 1" Valve FNPT
1.5" to 2" Valve MPT
All valves are fully ported
Mounting Method (4) 1/4" -20 tapped holes for
standard machine valve body.
(1/4" to 1.00")
(2) cut-out slots on molded
valve body (1/2" to 1.00")
