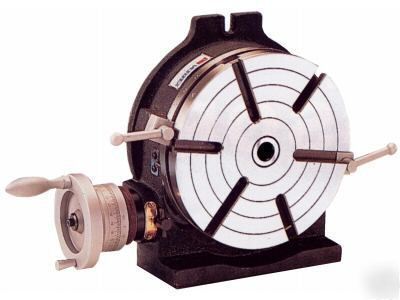

Vertex 14" vertical/horizontal rotary table
Vertex 14 inch Vertical / Horizontal Rotary Table Description Hardened and Ground Worm. The ratio is 90:1. The work table is graduated a full 360 degrees so that one turn of the handle moves the table through 4 degrees. Mirco collar is graduated in steps of 1 minute, and the vernier scale makes settings down to 10 seconds possible. These Rotary Tables are popular for their excellent performance, practical design and reasonable cost, they are widely used for circular cutting work, angle setting, boring, spot facing and similar work. Specifications HV14Table Diameter 350mmCentre Height 230mm6 Off Tee Slots 16mm Wide4MT Centre SleeveWeight 93Kgs Contact InformationROTAGRIP LTD16-20 Lodge RoadHockleyBirminghamB18 5PNTel 0(***) 551 1566Tel 0(***) 554 5177Fax 0(***) 523 9188email rotagrip@blueyonder.co.uk
