350MW 650NM red high power laser diode module w/driver
350mW 650nm Red High Power Builtin Driver Burning Laser Diode Module
They are rated for Class IIIb laser diode about 400mW @650-660nm CW extracted from DVD WR.
Output power : about 350mW(573mA) CW at driver input voltage about DC 4.5V

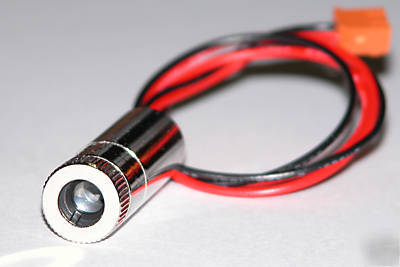

Housing : Diameter 12mm, Lenth 35mm, cable lenth 30cm(red is plus, black is minus) with connector, adjustable lens.
Driver : 3.8-5.0V(must not over 5.1V include ripple) - Power souce must supply more than 700mA
573mA switch mode constant current Driver DC input power ssource voltage range 3.5-5.0V.
Pin from left pad up to down; +V Input, GND, -Disable(default enabled)
It is possible order optional 110V AC to about DC 4.5V switching power supply(switch not included)- $20
Laser Beam From about 100mW laser module
