8.4INCH industrial tft lcd, G084SN03 v.1, 800X600, lvds

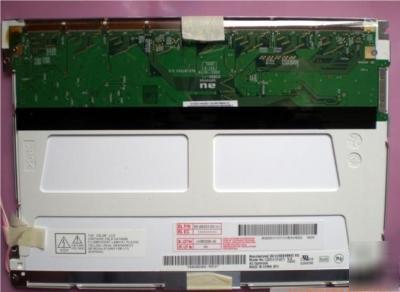

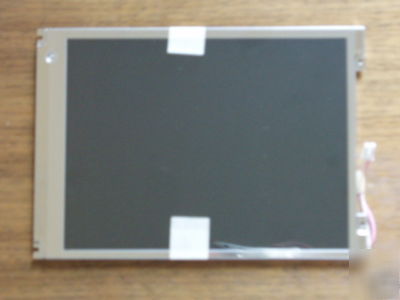

AUO 8.4inch industrial grade TFT LCD G084SN03 V1, 800x600, hot offer 150USD, Orignal New A grade
This specification applies to the 8.4 inch color TFT LCD module G084SN03 V1.
This module is designed for display units for Industrial Applications.
The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M (RGB
8-bits) or 262k colors (RGB 6-bits).
All input signals are LVDS interface compatible.
The module does not contain an inverter card for backlight.
Screen Diagonal [inch] 8.4 ( 213.4mm )
Active Area [mm] 170.4(H) x 127.8(V)
Typical Power Consumption [Watt] 3.3 typ.
Physical Size [mm] 203.0(W) x 142.5(H) x 5.7(D) (typ.)
Surface Treatment Anti-glare, Hardness 3H
Support Color 262K(6-bit) / 16.2M(8-bit)
Operating: -30 to +85 (+85oC as panel surface temp.)
Storage (Non-Operating): -30 to +85
Touching panel (15USD/pcs) as well as Touching panel controller (15USD/pcs) is available. Message me if you need me to setup new item to those other items.
