Datalogic barcode laser scanner DS4600A mirror OM4000

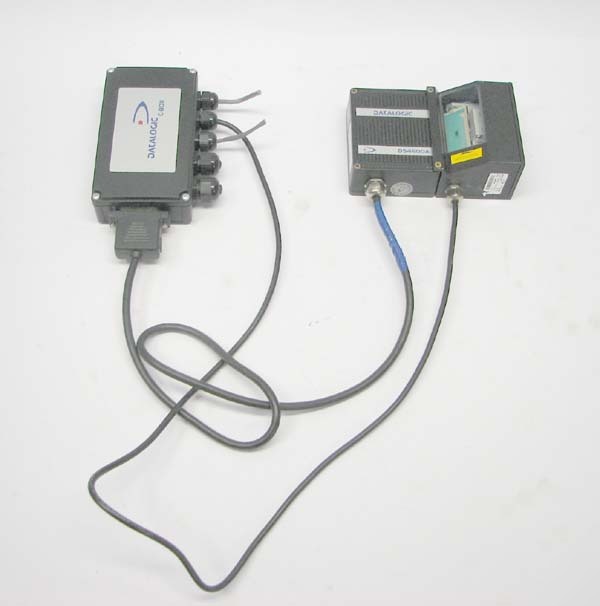

DataLogic Barcode Laser Scanner DS4600A Mirror OM4000
* 1 - DataLogic High Performance Compact Laser Scanner
* Model: DS4600A-3000 (ACR Version)
* Medium Range - Reading Distance up to 550mm
* Light Source: Visible Laser Diode (658 nm)
* Maximum Resolution: 0.2 mm (8 mils)
* Maximum Reading Distance: approx. 550 mm @ 0.5 mm resolution (approx. 360 mm @ 0.25 mm resolution)
* Readable Codes (most popular): 2/5 family, Code 39, Code 93, Code 128, EAN/UPC, EAN 128
* Multilabel Reading: Up to 6 different codes in the same presence sensor phase
* Interfaces: One RS232, on SW programmable RS232 / RS485 Multidrop
* Baud Rate: Up to 115.2 Kbauds (both serial interfaces)
* Input Signal: Presence Sensor plus 2 programmable inputs (Optocoupled NPN/PNP transistor)
* Output Signals: 2 fully programmable digital outputs (Optocoupled NPN transistor open collector and emitter)
* Programming Method: Through serial interface (Winhost configuration)
* Operating Modes: On Line, Serial On Line, Automatic, Test
* LED Indicators: Ready, Ready Phase Active, Good Read, Data Transmit
* Laser Classification: IEC 825 Class 2
* Protection Class: IP65
* Operating Voltage: 10 to 30 VDC
* Power Consumption: 6 W max
* 1 - DataLogic Oscillating Mirror Accessory For 4000 Series Laser Scanners
* For use with DS41, DS4300, and DS4600 Series Laser Scanners
* Operating Modes: Oscillating, Triggered, Fixed
* Raster Width: Adjustable between +20 and -20
* Oscillation Frequency: Adjustable between 0.5 and 20 Hz
* Protection Class: IP64 (when correctly mounted to scanner)
* Input Current: 250 mA @ 10 VDC (max)
* Power Consumption: 3 W @ 30 VDC (max)
* 1 - DataLogic Industrial Connection Box
* Operating Voltage: 10 to 30 VDC
* Protection Class: IP64
* For use with the entire DataLogic range of scanners
