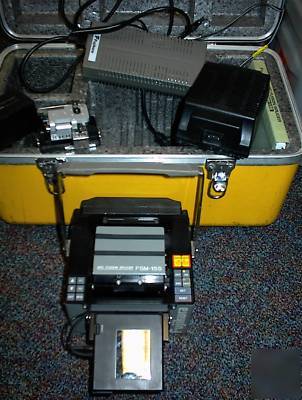

Fujikura 15S arc fusion splicer (used condition)
Please note this that this unit has reecently received maintainance service.
A Marvelous Combination of Fusion Splicing Performance and Cost Efficiency! The entirely new single fiber fusion splicer model FSM-15S has just been released by Fujikura Ltd. Designed primarily for fiber optic subscriber loops or fiber-in-the-loop systems, the FSM-15S offers a perfect balance between performance and cost effectiveness.
The FSM-15S combines the small size and field portability of Fujikura s FSM-05SVH II palmtop series with the full automation, ease-of-use and advanced features found in the more expensive FSM-30S fusion splicer. The FSM-15S utilizes the precision V-groove alignment and loss estimation technology pioneered by Fujikura s mass fusion splicers to achieve excellent splicing results with today s improved geometry optical fiber.
SM, GI and DS fibers to ITU-T(CCITT) Recommendations G.652, G.651, and G653 respectively.
Applicable Fiber Coating Diameters
0.045 dB. Typ. with SM fiber 0.02 dB Typ. with GI fiber.
Both X and y axes simultaneously
30 in total (10 for SM, 10 for GI, 10 for DS)
Splice Loss Estimation To Be Made On
No. Of Splice Results To Be Stored
Altitude Compensation Function
0 to 3500 meters above sea level
Mechanical Proof Test On Spliced Fibers
200 grams (1/2 LB or 23 KPSI) standard unless ordered otherwise (450 grams [1 LB or 50 KSPI] optional)
Conventional heat-shrinkable splice protector with 60mm length, or alternatively 40mm length using the SPA-40 Splice Protector Adapter
12VDC from the interchangeable battery, external DC, or directly from AC (85 to 265VAC) using the ADC-06 AC/DC Converter
* Fujikura FSM-15S-A Fusion Splicer
* Fujikura ADC-06 AC Adapter
* Fujikura BTR-02 Battery Pack
* Fujikura BTC-01 Battery Quick Charger
