10" x 20" amw (proth) surface grinder w/ auto down-feed

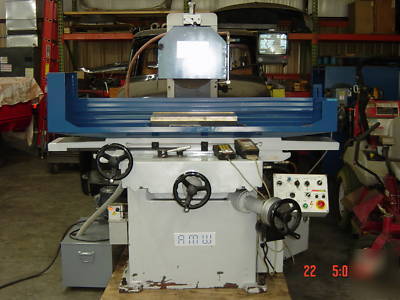

10" x 20" AMW (PROTH) 3 AXIS AUTOMATIC SURFACE GRINDER

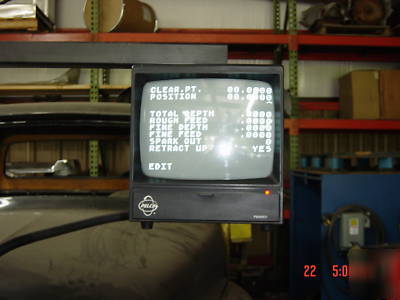

10 x 20 AMW "HEAVY DUTY" SURFACE GRINDER W/ AUTO INCREMENTAL DOWNFEED
(MADE BY PROTH) (PROTH ALSO MADE MARK GRINDERS)

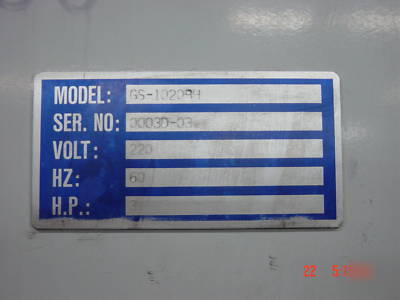

MODEL : 1020 S/N: 003D-03 NEW: 1994
WIDTH & LENGTH GROUND ....................... 10" X 20"
CROSS TRAVEL .................................... 11.5"
LONGITUDINAL TABLE TRAVEL ....................... 24.0"
MAX SPINDLE CENTER TO TABLE SURFACE ............. 16.1"
NO. OF GRADUATIONS ON DIAL ........................ 500
FEED PER REVOLUTION ............................ 0.050"
RAPID DOWNFEED .................... 11.8 IPM

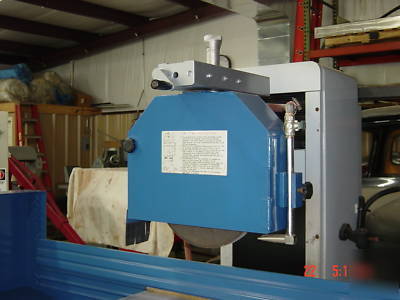

WHEEL SIZE (OD X WIDTH X ID) ............. 14" X 1" X 3"
SPINDLE MOTOR ................................... 3 HP

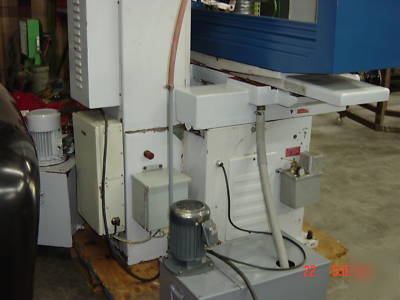

COOLANT SYSTEM MOTOR ........................... 3/4 HP
APPROXIMATE WEIGHT ......................... 6,000 LBS
APPROXIMATE DIMENSIONS (W X D X H) ..... 8 x 6 x 7
VARIABLE SPEED SPINDLE SPEED (900 TO 2,100 RPM)

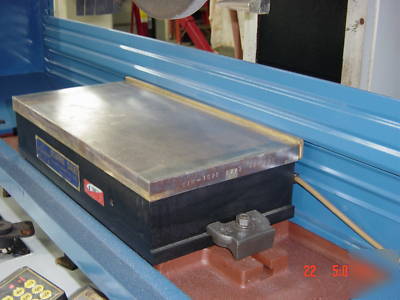

10" X 20" ELECTRO-MAGNETIC CHUCK W/NEUTROFIER CONTROL
I will put the complete machine and all of it's components on a large heavy-duty pallet at no charge. I can load a trailer or flat bed with my forklift, but I cannot load an enclosed van because I don't have a loading dock.
If you have any questions you can e-mail me at ****@charter.net. I will e-mail you back or call you if you leave a number.
