3-pole terminal connector plug & pcb mount header #301

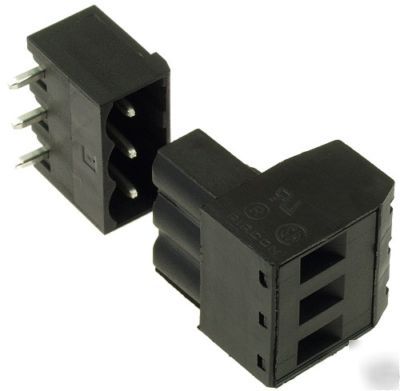

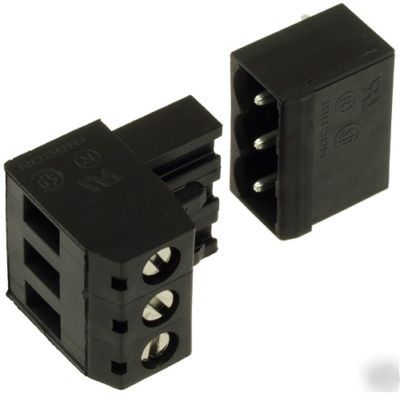

3-Pole Terminal Connector Plug & PC Board Mount Header
Brand new printed circuit board mount 3-pole terminal connector and header. The PC board mounting pins are spaced 0.200 inches apart center to center so they will mount into a 0.100 inch matrix making them perfect to use with breadboards and pre-drilled printed circuit boards. The terminal connector accepts wire sizes from 28 AWG to 12 AWG and the wires are attached to the plug by tightening screws on top of the plug. The conductors are recessed inside of the wire entry area so the wires can be fully inserted inside of the plug leaving no exposed or bare wires after installation. The minimum wire insulation strip length is 8mm. UL Listed. Rated for 300 Volts, 16 Amps. Made in Germany.
Electrical Specifications: UL and CSA rating = 16 Amp, 300 Volts
Manufacturers Part Numbers: 31249103 (terminal connector) and 31230103 (header)
Manufacturers Data Sheet: http:// /_assets/catalog/2009_TB_98.pdf
Manufacturers Website: http:// /
ElectricScooterParts Item #301
