Allen bradley 1407-cgcm generator control module >

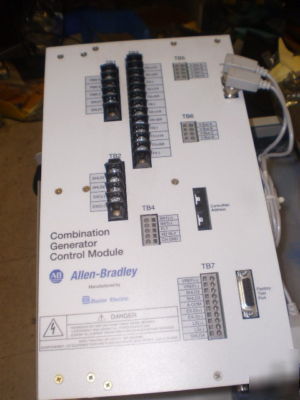

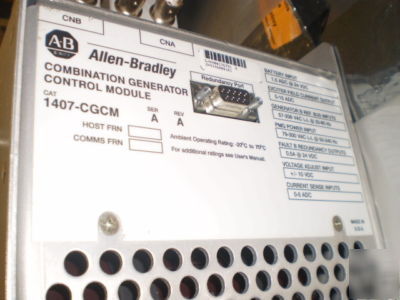

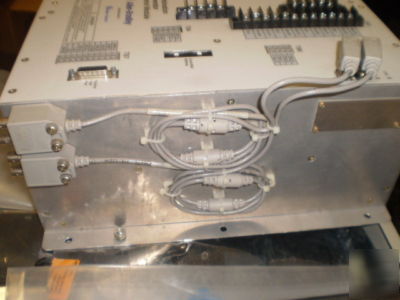

ALLEN BRADLEY 1407-CGCM GENERATOR CONTROL MODULE >
* The CGCM consists of a single module that provides multiple functions needed to implement a generator control system. It supplies controlled excitation current to the generator field winding in order to produce the desired generator output voltage. The CGCM also measures the generator field current, the generator output voltage, and the generator output current. These measurements are used to implement a variety of protection functions to insure the generator operates within its design ratings. In addition, the CGCM measures the voltage on one or two reference busses. This additional information provides the data needed to synchronize the generator output to the selected reference bus to allow the generator to operate in parallel with another generator or the utility supply. All of the measured data is available as full featured metering data. Access to the CGCM data and functions is provided via a standard ControlNet communication port.
UNIT IS GUARANTEED TO BE OPERATIONAL!
