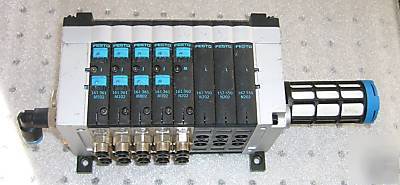

Festo pneumatic valve block CP14V with 5 valves
Festo pneumatic valve block, used but in good condition, guaranteed for 30 days. Since these are configurable from the factory, I've listed the part numbers and quantities for each of the modular pieces; complete specifications can be found at http:// /pdf/catalog_cpv.pdf by searching on any of the part numbers.
Includes the following modules:
* CPV14-VI Valve Block (part number 18210)
* CPV14-GE-MP-8 8-position top plate with milti-pin electrical connection (part number 18265)
* 5/2-way valve, double solenoid (part number 161 361), qty 4
* 5/2-way valve, single solenoid (part number 161-360), qty 1
* Filler Plate (part number 162-550), qty 3
* Exhaust Silencer (part number 2309), qty 1
* 18" Wiring Harness - 25-pin D-Sub to unterminated cable (not shown)
* LED Displays for each valve module
* 25-pin D-Sub connector for control wiring
