New cooper 75 kva 1PH oa pad mount transformer

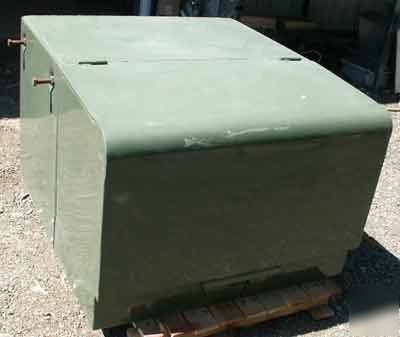

New Cooper 75 KVA 1PH OA Pad Mount Transformer New
Model/Part No: 13664:001Item Code: cooper_trans Physical Condition: NewWorking Condition: New Tested/Not Test?: NoItem New or Used?: New
New Cooper 75 KVA 1PH OA Pad Mount Distribution Transformer 60Hz, Serial No: 13664:001, HV 12470GRDY/7200. Hinged top with Bay-O-Net fuse, and oil filled.
Meet or exceed ANSI C57, 12.28 and C57.12.29 anc CSA/CEA Standards Full compliance with ANSI C57.12.28 enclosure integrity requirements Laser-scribed anodized aluminum nameplate Recessed stainless stell lifting provisions Tank grounding provisions Automatic pressure relief device Electrical grade mineral oil Hinged door with stainless steel hinge pins and barrels Floating lock pocket for easy alignment Captive corrosion resistant pentahead door locking bolt Oil fil and drain provisions Removable sill Welded domed tank cover High-voltage bushings wells - 200 A Ground strap from X2 to tank ground Tamper strips of noncorrosive material Decal bushing designations
75 KVA, 1PH, 60Hz, Serial No: 13664:001, HV 12470GRDY/7200, KV BIL 95, LV 240/120 KV BIL 30, HV: AL, LV: AL, 1024 LBS., 41 U.S. GALS. Oil, NON PCB,
