Ttc jdsu acterna 2000 tstpad t-berd 2310 tberd OC3 OC12

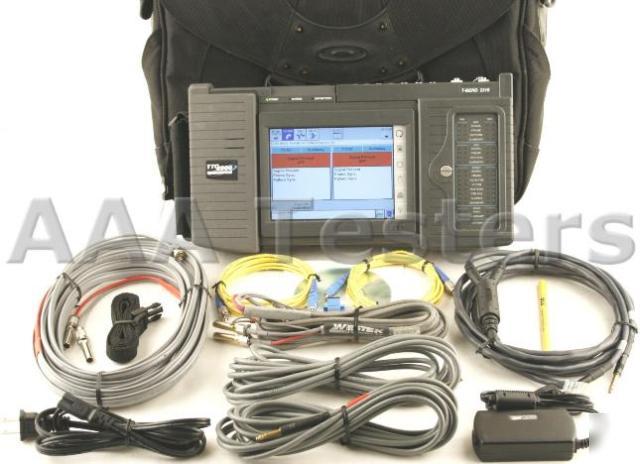

* TTC Test Pad 2000 Communication Analyzer With Color Screen
* T-BERD 2310 Field Service Module With Options:
* 440 Dual - BNC Male Dual Cable
* TTC 80-41645 Dual Bantam - Split to RJ45
* Westek Electric Dual 440D To Dual 440D w/ Tracer
TTC 2000 Test Pad with T-BERD 2310 Field Services Module. Test electrical interfaces at STS-1, DS3, and DS1 rates & Perform bit error rate tests on DS3/DS1 circuits
TTC T-BERD 2310 Field Services Module
The 2310 Field Services Module is an all-in-one integrated testing solution
that performs multi-rate transmission testing from DS0 to OC-48/48c and supports
physical layer and enhanced services testing at different network rates. Its modular
architecture protects your long-term investment by providing the flexibility, scalability,
and field upgradability to support evolving test needs.
* Multi-rate transmission testing from DS0 to OC-48c in a single hand-held unit
* Perform end-to-end BER testing using a wide range of stress test patterns
* Analyze network performance by simulating abnormal conditions and inserting various errors and alarms
* Perform in-service monitoring of the circuit under test to ensure quality of service
* Verify proper provisioning of network multiplexers and de-multiplexers
* Qualify protocol services such as ATM, GR-303, and ISDN and decode protocol messages
* Perform VF and signaling analysis on test circuits
* Troubleshoot performance of channelized DS0 services from an in-service circuit using the drop and insert operational mode
* Perform network timing synchronization tests and isolate timing errors
* Test optical interfaces at OC-48/48c, OC-12/12c, and OC-3/3c rates
* Test electrical interfaces at STS-1, DS3, and DS1 rates
* Perform bit error rate tests on SONET/DS3/DS1 circuits
* Manipulate SONET overhead bytes with an easy-to-use interface and analyze network performance under abnormal conditions
* Perform bi-directional monitoring of STS-1/DS3/DS1 circuits
* Monitor and test ATM circuits and verify quality of service measurements
* Place and receive calls on an ISDN PRI circuit and test non-facility associated signaling (NFAS) and backup D-Channel circuits
* Monitor GR-303 protocol links for proper configuration and collect call statistics
* Analyze signaling bits on a T1 voice trunk and place and receive calls
* Use VT100 emulation to configure and monitor network elements
* Configurable Results (Quad Results )
* Physical, Active Port, and Laser Active LEDs
* Simultaneous Results for Different Signal Rates
* Timed Prints and Error Logs
* Through Mode for All Rates
