Nsk nakanishi high speed air turbine spindle ams-1210

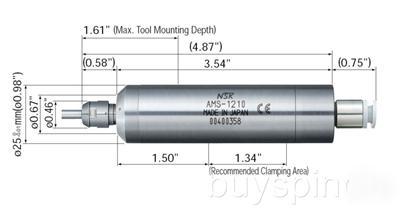

Nsk Nakanishi High Speed Air Turbine Spindle AMS-1210
ULTRA PRECISION HIGH SPEED AIR TURBINE SPINDLE AMS-1210 0.98" (25mm) 120,000 min-1(rpm)
AMS-1210 Air Turbine Spindle Collet 1/8" (CHA-3.175) : 1 pc. Collet Nut (CHN-A) Wrench (8 x 5), (9 x 11) : 1 pc. each Intake Air Hose (K-254) : 6 mm x 6 ft Operation Manual
AMS-1210 Air Motor Spindle Specifications
Proper Air Pressure 42~56PSI
Hose Diameter : Air Intake 4.0 mm (I.D.) x 6.0 mm (O.D.)
Useable Max. Diameter of Grindstone 0.24"
Speed 120,000 min-1(rpm) (56PSI)
