Power supply MA010A switcher 15V to 10V in 5V 2 amp out

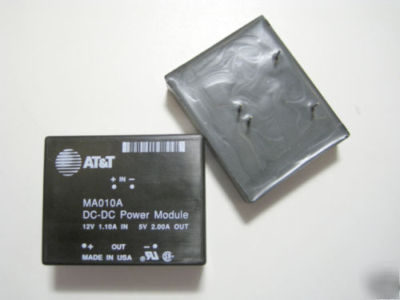

Power Supply MA010A Switcher 15V to 10V in 5V 2 Amp out
LOOK AT THIS PDF FOR COMPLETE INFO AND SPECS
* (2.00 in. x 1.60 in. x 0.50 in.)
* High efficiency: 78% 84% typical
* Operating ambient temperature range: 10 C to +50 C, no derating
* Printed-circuit board mountable
* Meets FCC Class A requirements
* UL* Recognized, CSA Certified, and VDE Licensed
The MA010A, B, C, BK, and CL Power Modules are dc-dc converters that operate over an input voltage range
of 10 Vdc to 15 Vdc and provide precisely regulated 5 V, 12 V, 15 V, 12 V, and 15 V outputs, respectively. The
outputs are isolated from the inputs, allowing versatile polarity configurations and grounding connections. The
modules have maximum power ratings of 10 W with a typical full-load efficiency of over 80%.
The modules are PC-board-mountable and encapsulated in nonconductive cases. The modules are rated to full
load at 85 C case temperature with no external filtering or heat sinking.
The MA010-Series Power Modules use advanced, surfacemount technology and deliver high-quality, compact, dc-dc
conversion at an economical price.
