Professional ccd sony camera

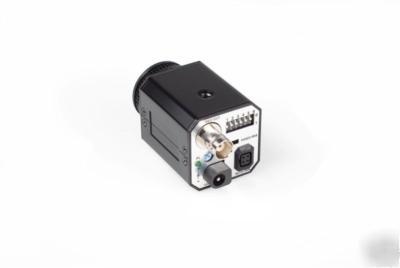

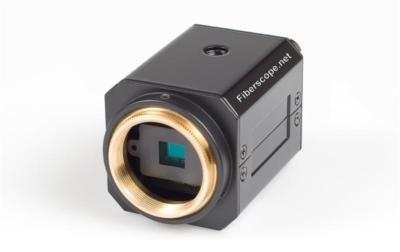

NEW PROFESSIONAL CCD SONY EX-VIEW HAD SENSOR ANALOG VIDEO CAMERA
FOR USE IN WIDE RANGE OF INDUSTRIAL APPLICATIONS
IT FEATURES 1/3" ENHANCED SUPER SENSITIVE EX-VIEW CCD SONY SENSOR
AND A LOTS OF MANUAL CONTROL ORGANS FOR CAMERA ADJUSTMENT
ACCORDING TO THE INSPECTION ENVIRONMENT!
2. 110/220V to 12V DC regulated power adapter.
3. RCA video cable to connect to specialized monitor or TV with analog RCA video input (regular VCR Video-In connection).
4. VIDEO COUPLER SHOWN ON THE PICTURES IS SOLD SEPARATELY
Here is the Specifications of the PAL and NTSC versions of the camera:
1/3 Ex-View HAD Sony CCD Image Sensor
470 TV Lines / 580 TV Lines (Enhanced)
52dB (MIN) / 60dB (TYP) (AGC OFF)
Auto high speed White Balance (Zero color rolling)
3200-10000 K with normal Filter
CAMERA DIMENTIONS W/O VIDEO LENS ADAPTER
What is Ex-View HAD Sony CCD Sensor that we use in our professional cameras?
EXview HAD CCD is a trademark of Sony Corporation. EXview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation Diode) sensor.
In the field of surveillance cameras and on-board cameras, there are needs to film with high sensitivity in not only light but also in dark environments. To answer these needs, Sony has developed the new structure "EXview HAD CCD", which is capable of detecting with great sensitivity near infrared light region which is unable to be discerned by the naked eye. Light in the near infrared light region which has long wavelengths is converted into photoelectricity deep in the semiconductor's silicon, so in conventional CCD structure, sensors were incapable of efficiently gathering the charge which has undergone photoelectric conversion. This "EXview HAD CCD" structure has made it possible to use as video information the charge of near infrared light which was hitherto invalid. This resulted in a dramatic region improvement in sensitivity. This in turn made it possible to film in the dark by radiating near infrared light which is invisible to the naked eye onto the object being filmed, which opens up applications in a broad range of applications, such as surveillance cameras, on-board cameras and scientific measurement cameras.
Comparison of Image of EXview HAD CCD and Conventional CCD
Imaging conditions: LED illumination in completely dark room
LED specifications: light source output 8.9 mW, wavelength 945 nm, half width 45 nm, illumination distance 1m
