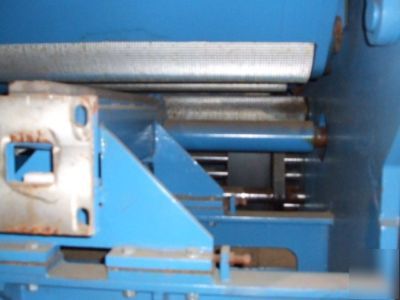

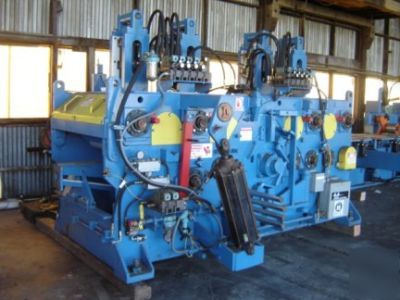

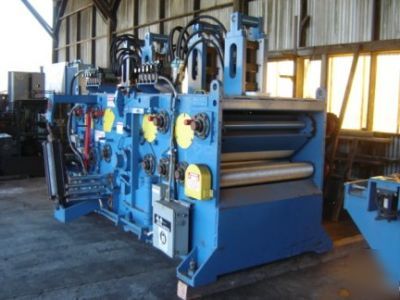

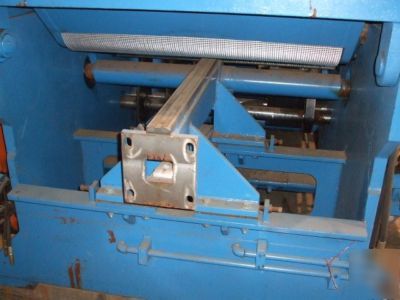

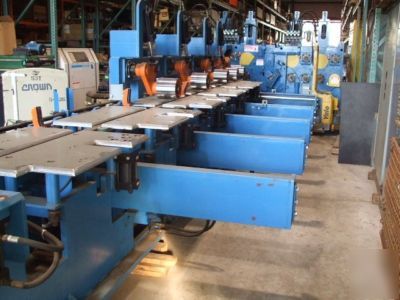

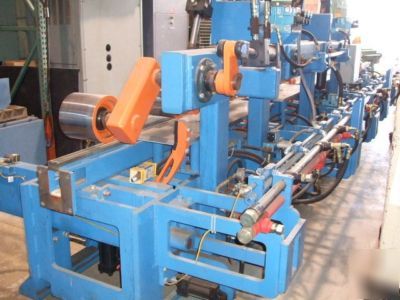

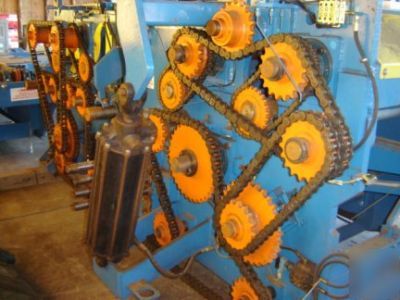

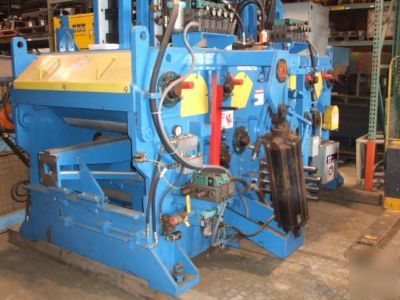

Rebuilt / tmt 6" bottom arbor combination gang/edger
EDGER FEED RATE 400 FPM / GANG (3 PPM)
700-800 fpm / board (15 ppm)
TARGET SIZES 6/4" - 1.635 (1/24/05)
MATERIAL SIZE LENGTH 8' TO 26' (BOARD)
WIDTH 3-1/2" TO 18" (BOARD SIDE)(24"FUTURE)
BOARD SIZE THICKNESS 1" TO 2",& 4" SQUARES (BOARD SIDE)
ARBOR DRIVE 400 HP (NO MOTOR)(NO MOTOR BASE)
EDGER FEED DRIVE 50 HP (NO MOTOR)
SAW GANG SIDE 20" X 6" #3 X .090" X.120" X 2800 RPM X 40T X 30 DEG.
SAW BOARD SIDE 20" X 6" #3 X .120" X 160" X 2800 RPM X 65T X 25 DEG.
no motor and no motor base //
