Ez-usb FX2LP CY7C68013A-128 32K sram development board

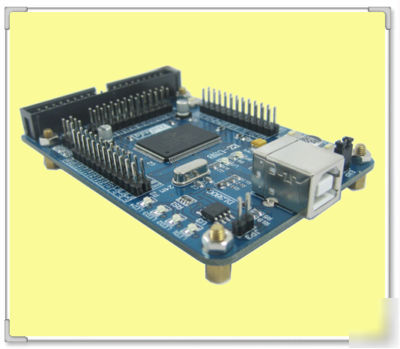

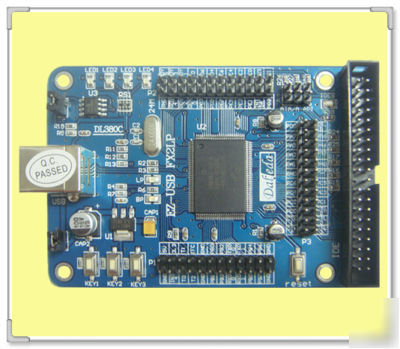

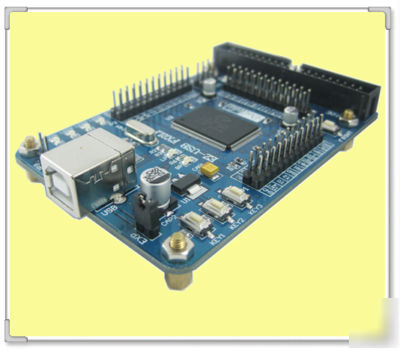

EZ-USB FX2LP CY7C68013A-128 32K SRAM Development Board
This development board provide a acceleration to learn or achieve USB2.0 high speed communication. It is an ideal choice for high speed data acquisition system. The board is a stand alone system , user can achieve their task by only a little extension of IOs. Also it is seamless to connect with out FPGA board , only need some flying wires .
1. Cypress FX2LP Cy7C68013A-128 MCU: low-power version, enhanced 51-core, clocked at 48Mhz, 480Mbps high-speed transmission protocol standard, fit for USB2.0 specification, backward compatible with USB1.1.
2. Complete the online simulation debugging program, the window through the whole development environment Keil, do not only need to bring the simulator can simulate serial debugging, this is good news for the learners is concerned.
2. On board 128K I2C EEPROM which store PID & VID and MCU firmware
3. 4 LED indicators & 3 user buttons
4. PATA IDE connector which can connect to IDE hard driver directly to emulate USB Mass Storage Device
5. All MCU IO port is routed to either side of the board

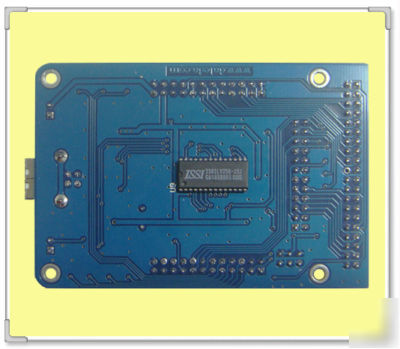

32KB_SRAM, take more convenient for large-scale applications require expanded memory.
7. IO port name is printed on the silkscreen, easy for looking up
8. The board is simply powered from USB connector
9. Schematic , device datasheets , application notes , development software and rich project program source code is provided
1. EZ-USB FX2LP CY7C68013A-128 32K SRAM Development Board X1
2. Provide CD-ROM or E-mail with schematic , datasheets , EZ-USB Development software and sample code X1
3. One B-type to A-type USB2.0 cable X1
DLU2C USB2.0 Dev Board Connected with Movable Hard Disk
DLU2C USB2.0 Dev Board Connected with Movable Hard Disk Testing Display
DLU2C USB2.0 Dev Board + "USB to RS232/TTL Module"
DLU2C USB2.0 Dev Board +NAND_FLASH+CF_CARD
