Fluke 724 temperature calibrator TL75 AC72 FLUKE724

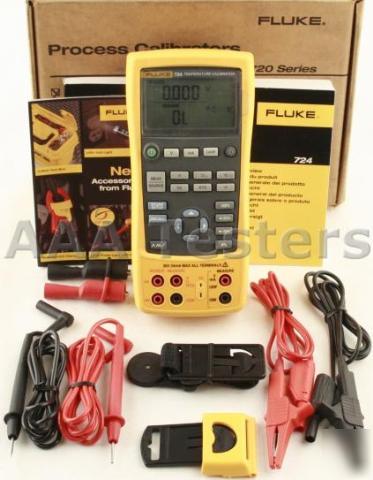

* Fluke 724 Temperature Calibrator
* Fluke TL75 Hard Point Test Lead Set (1 Red - 1 Black)
* Fluke AC72 Alligator Clips (1 Red - 1 Black)
* Fluke Alligator Test Clips (1 Red - 1 Black)
Fluke 724 Temperature Calibrator
Includes Original Factory Box & Complete Accessories!
Built for the masters of temperature.
The new Fluke 724: everything you need to troubleshoot and calibrate temperature.
* Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
* The Fluke 724 is the master s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
* The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power.
* The dual line measure/source display lets you source temperature and view loop current at the same time.
* With its simple, no menus controls, the Fluke 724 is easy to operate, too.
The new Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.
* Easy to read dual display lets you view input and output simultaneously
* Measure RTDs, thermocouples, ohms, and volts to test sensors and transmitters
* Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
* Perform fast linearity tests with 25% and 100% steps
* Execute remote tests with auto step and auto ramp
* Power transmitters during test using loop power supply with simultaneous mA measurement
* Compact, streamlined shape makes it easy to carry
* Rugged, reliable design stands up to field use
* Backlight lets you work in poor light
* Large battery capacity of four AA cells
* Battery door for easy changes
0.02%+ 2 counts (upper display)
0.02%+ 2 counts (lower display)
0.025 % + 1 count (via TC connector)
0.1 (4-wire), 0.15 (2- and 3-wire)
0.5 (4-wire), 1 (2- and 3-wire)
1 (4-wire), 1.5 (2- and 3-wire)
0.15 (exc. current 0.15 to 0.5 mA), 0.1 (exc. current 0.5 to 2 mA)
0.5 (excitation current 0.05 to 0.8 mA)
1 (excitation current 0.05 to 0.4 mA)
J, K, T, E, L, N, U: 0.1 C, 0.1 F B, R, S: 1 C, 1 F
Accuracy stated for 4-wire measurement.
J, K, T, E, L, N, U: 0.1 C, B, R, S: 1 C
Voltage, current, resistance, frequency, temperature
Slow ramp, Fast ramp, 25% step-ramp
22 mA, short circuit protected
Humidity (Without Condensation)
EN50082-1:1992 and EN55022:1994 Class B
