New motorola silicon pressure sensors MPXL10GC7U lot 25
MOTOROLA 10 kPa UNCOMPENSATED SILICON PRESSURE SENSORS MPXL10GC7U NEW LOT OF 25

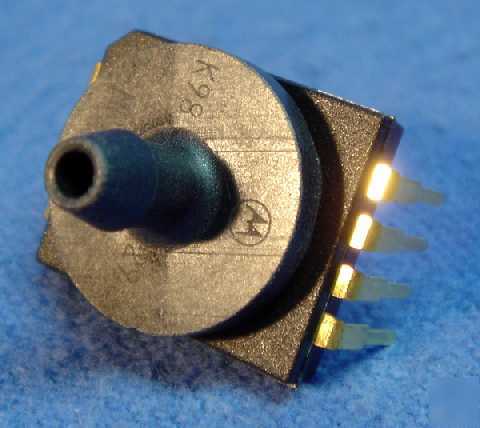

MOTOROLA 10 kPa UNCOMPENSATED SILICON PRESSURE SENSORS MPXL10GC7U
Description : 0 to 10 kPa (0-1.45 psi) 35 mV FULL SCALE SPAN (TYPICAL)
10 kPa Uncompensated Silicon Pressure Sensors
The MPXL10 series device is a silicon piezoresistive pressure sensor providing a very
accurate and linear voltage output directly proportional to the applied pressure. This
standard, low cost, uncompensated sensor permits manufacturers to design and add
their own external temperature compensating and signal conditioning networks.
Compensation techniques are simplified because of the predictability of Motorola s single
Patented Silicon Shear Stress Strain Gauge Design
Ratiometric to Supply Voltage
Easy to Use Chip Carrier Package Options
Differential and Gauge Options
Available in Unibody Package (see MPX10 Series Data Sheet)
Environmental Control Systems
COMPLETE DATASHEET AT: http:// /datasheet-pdf/pdf/5193/MOTOROLA/MPXL10GC7U.html
