Nikon MM-40 Measurescope Measuring Microscope - Toolmaker's Microscope
Nikon's Measuring Microscopes offer the performance, convenience and an unprecedented degree of flexibility for upgrading and expansion. MM-40's compact body enables stage travel of 150mm on the X-axis, 100mm on the Y-axis, and 150mm on the Z-axis.
Significantly Higher Precision and Efficiency. Nikon's newly developed optical Focusing Aid enables much more accurate measurements of the Z-axis. The measuring microscopes also have a linear glass scale that covers the full range of vertical movements. Together, the focusing aid and scale yield a substantial improvement in the reliability of Z-axis measurements.
Modular Design so that Accessories Can be Added
The microscope stand is made to accommodate a number of accessories including digital read-outs, CCTV camera system, data processors and stage motorization kit.
Fixed Z-axis measurements and focusing aids allow users to adapt the MM-40 to specific uses and budgets.
Accommodating Wide-Stance Stages
Using CAE (Computer Aided Engineering) analysis, Nikon has developed rigid body designs that are optimized to allow the incorporation of long-stroke stages while maintaining high accuracy: 250 x 150mm for the MM-60 and 150 x 100mm for the MM-40.
Designed with an Emphasis on Convenience to Shorten Measuring Time. Bright, low-flare optical systems, illuminators with continuous lighting, a new vertical-movement system, three-axis digital counter and other features are part of an overall ease of operation that supports swift measurements.

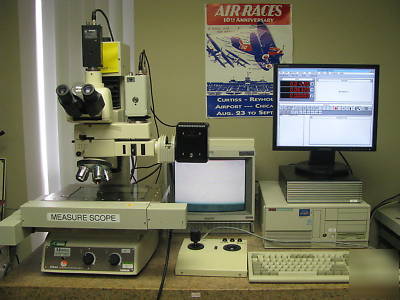

* CPU/ Joystick CNC Controlled (motor stops)
* QC-4000 - Computer Controlled (Win 3.1)
* 3CCD Color Video Camera
* Darkfield/Bright Field Capable
* Darkfield Light Source Installed, needs power supply
* Eyepieces: CFWN10x/20 Right Eyepiece has a Reticle
* Nikon CF Plan 10X /.30BD
* Nikon CF Plan 50X /.80BD
* Nikon CF Plan 100X /.90 WB
As you can see this is a very powerful, versatile instrument. Unit was removed from working environement
