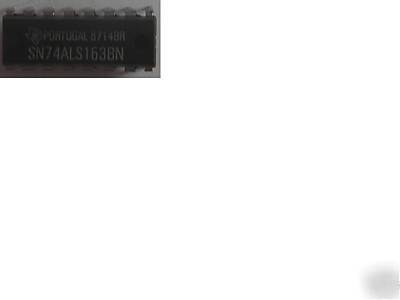

Texas SN74ALS163BN 4-bit decade and binary counters
These synchronous, presettable, 4-bit decade and binary counters feature an internal carry look-ahead circuitry for application in high-speed counting designs. The SN54ALS162B is a 4-bit decade counter. The 4ALS163B is a 4-bit binary counter. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincidentally with each other when instructed by the count-enable (ENP, ENT) inputs and internal gating. This mode of operation eliminates the output counting spikes normally associated with asynchronous (ripple-clock) counters. A buffered clock (CLK) input triggers the four flip-flops on the rising (positive-going) edge of the clock input waveform. These counters are fully programmable; they may be preset to any number between 0 and 9 or 15. Because presetting is synchronous, setting up a low level at the load (LOAD*) input disables the counter and causes the outputs to agree with the setup data after the next clock pulse, regardless of the levels of the enable inputs. A low level at the clear (CLR*) input sets all four of the flip-flop outputs low, regardless of the levels of the CLK*, LOAD*, or enable inputs. The clear function for the 4ALS163B is synchronous, and a low level at CLR* sets all four of the flip-flop outputs low after the next clock pulse, regardless of the levels of the enable inputs. This synchronous clear allows the count length to be modified easily by decoding the Q outputs for the maximum count desired. The active-low output of the gate used for decoding is connected to CLR* to synchronously clear the counter to 0000 (LLLL). The carry look-ahead circuitry provides for cascading counters for n-bit synchronous applications without additional gating. ENP and ENT inputs and a ripple-carry (RCO) output are instrumental in accomplishing this function. Both ENP and ENT must be high to count, and ENT is fed forward to enable RCO. RCO, thus enabled, produces a high-level pulse while the count is maximum (9 or 15 with QA high). The high-level overflow ripple-carry pulse can be used to enable successive cascaded stages. Transitions at ENP or ENT are allowed, regardless of the level of CLK.
Internal Look-Ahead Circuitry for Fast Counting
Carry Output for n-Bit Cascading
This may be a CMOS device, so take appropriate anti-static precautions.
The chip comes in a Dual-In-Line 20 package.
**FREE POSTAGE ON EACH ADDITIONAL IC**
You can order as many adapters as we have in stock from this listing and any other listing, yet still only pay for the cost of postage for the first adaptor. This is because the adaptors weight is almost negligible, and thus the increase in postage cost is very tiny compared to the combined value of all adapters ordered; basically we pay the additional cost.
