Wireless radios: maxstream/digi 900MHZ point 2 point


This ad is for (32) Maxstream/Digi 900mhz point to point radios

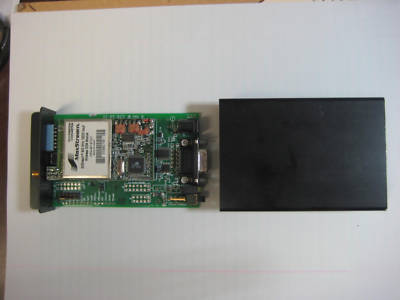

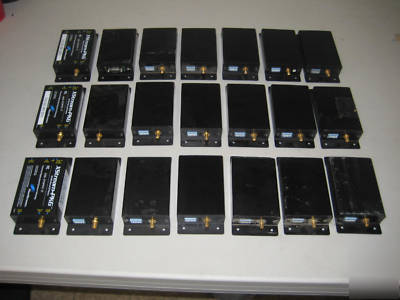

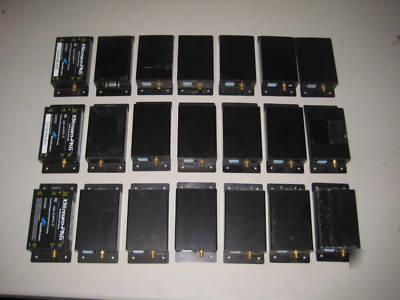

18 assembled in metal enclosures with RS232 serial port- D9 connector

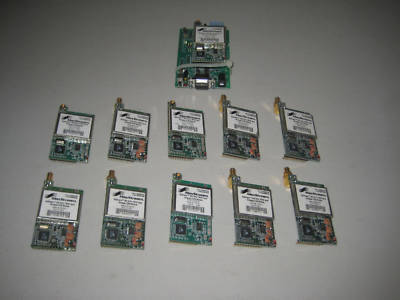

11) PCB OEM modules with radio unassembled
Units sell new assembled in metal enclosure at $300 each.
* Indoor/Urban range (w/ 2.1 dB dipole antenna):
* Up to 1500 feet (450 m) @ 900 MHz
* Up to 600 feet (180 m) @ 2.4 GHz
* Outdoor RF line-of-sight range (w/ 2.1 dB dipole antenna):
* Up to 7 mi (11 km) @ 900 MHz
* Up to 3 mi (5 km) @ 2.4 GHz
* Outdoor RF line-of-sight range (w/ high gain antenna):
* Up to 20 mi (32 km) @ 900 MHz
* Up to 10 mi (16 km) @ 2.4 GHz
* 100 mW (20 dBm) @ 900 MHz
* 50 mW (17 dBm) @ 2.4 GHz
* 900MHz: -110 dBm (@9,600 bps throughput data rate), -107 dBm (@19,200 bps)
* 2.4 GHz: -105 dBm (@9,600 bps throughput data rate), -102 dBm (@19,200 bps)
* Interface data rate (software selectable): 10 - 57600 bps (including non-standard baud rates)
* Throughput data rate: 9,600 or 19,200 bps
* RF data rate: 10,000 bps (@9,600 bps throughput data rate) or 20,000 bps (@19,200 bps)
* Power supply voltage: 7 - 18V
* Power Down Current: < 1 mA
* Power supply voltage: 5 - 12V
* Power Down Current: 50 mA
* Frequency: ISM 902 - 928 MHz or 2.4000 - 2.4835 GHz
* Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
* Modulation: FSK (Frequency Shift Keying)
* Supported network topologies: Peer-to-peer (no master/slave dependencies), point-to-point, point-to-multipoint and multidrop
* Channel capacity (software selectable): 7 hopping sequences
* Network filtration layers: VID, Hopping Channel & Destination Address
* Connector options: RPSMA (Reverse Polarity SMA)
* Impedance: 50 ohms unbalanced
* Operating temperature: 0 C to 70 C (commercial)
* Operating temperature: -40 C to 85 C (industrial)
* FCC ID (U.S. Certification Part 15.247)
* 4214A-9XSTREAM (900 MHz)
* ETSI, CE (2.4 GHz only)
* RS-232/485 DB-9 (XStream-PKG-R)
* XStream-PKG-R, XStream-PKG-U:
* Length: 2.75 in (6.99 cm)
* Width: 5.50 in (13.97 cm)
* Depth: 1.12 in (2.86 cm)
* Weight: 7.10 oz (200.00 g)
