125 ton south bend johnson 125BG-ac obi press 42" x 27"

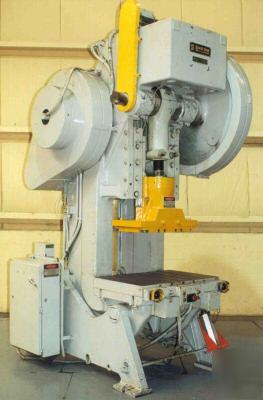

125 TON JOHNSON #125BG-AC OBI PRESS
SERIAL .............................. 80076
MODEL ............................... 125BG-AC
YEAR NEW ............................ 1980
CONSTRUCTION ........................ SINGLE BACK-GEARED
CAPACITY ............................ 125 TONS
STROKE .............................. 4"
SHUT HEIGHT ......................... 24-1/2"
ADJUSTMENT .......................... 6"
STROKES PER MINUTE .................. 40
AREA OF BED ......................... 42" X 27"
AREA OF RAM ......................... 30" X 17-1/8"
BED BOLSTER SIZE, T-SLOTTED ......... 42" X 27" X 4"
DISTANCE BETWEEN UPRIGHTS ........... 20-1/2"
HOLE IN BED ......................... 20-1/2" X 15"
FLOOR TO BED ........................ 33"
AIR CLUTCH & BRAKE .................. YES
DUAL PALM BUTTONS ................... YES
MOTOR ............................... 15 HORSEPOWER
